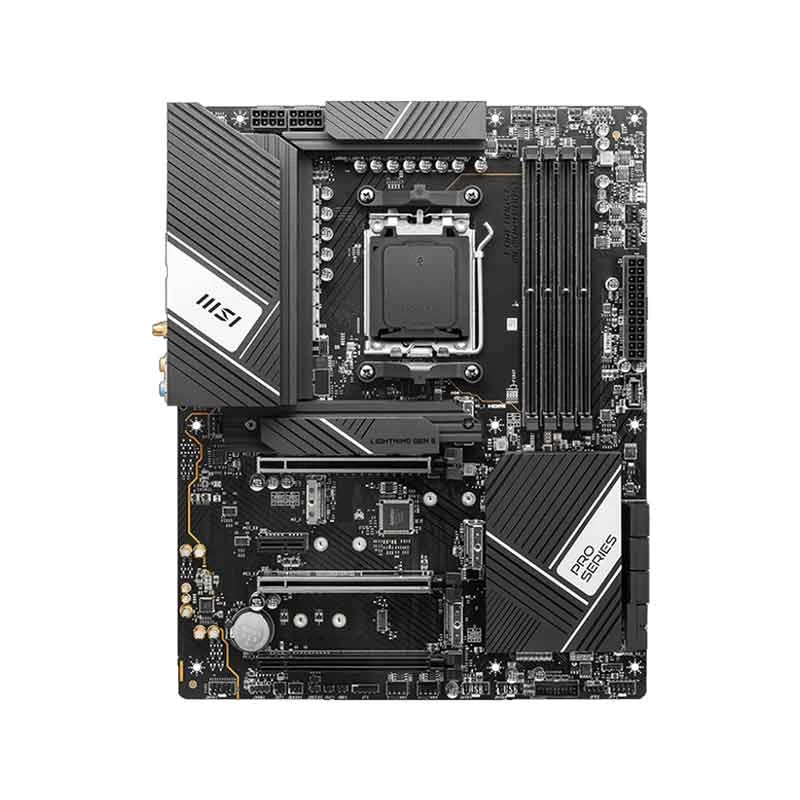

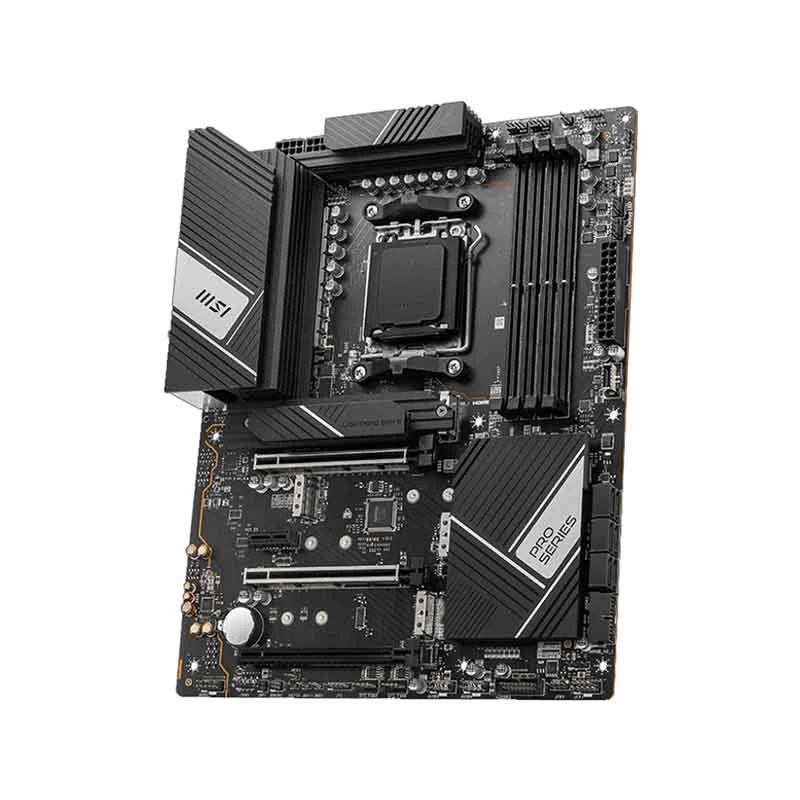

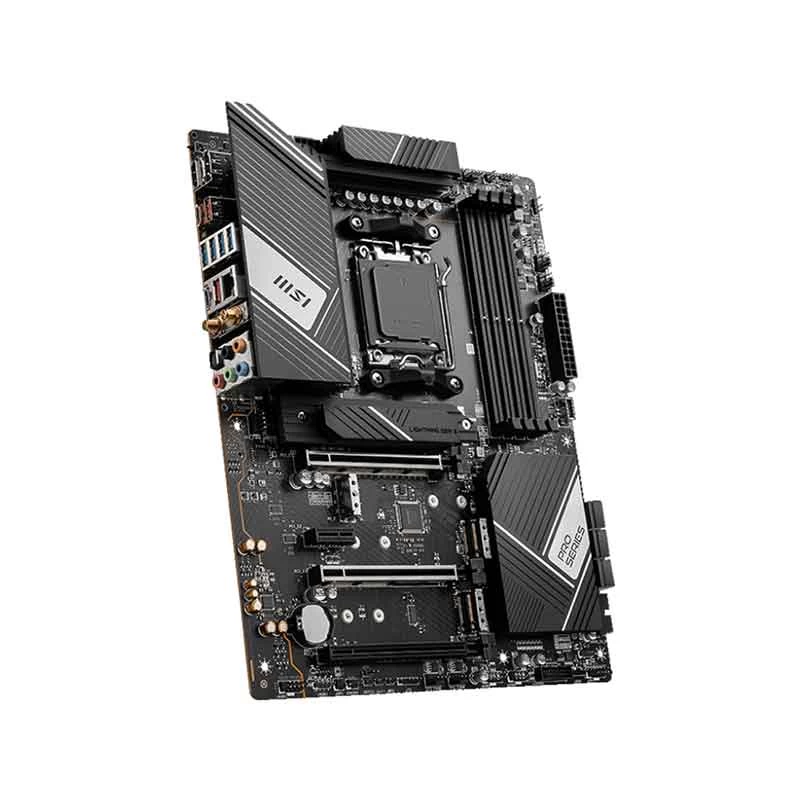

MSI PRO X670-P (Wi-Fi 6E) DDR5 AMD AM5 Socket Motherboard

Product Id: 02.02.033.356

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD X670
  • Sockets Supported - AM5
  • Supported CPU - AMD Ryzen 7000 Series
  • Generation - Not Applicable
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
MSI

Model
MSI PRO X670-P (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD X670

Sockets Supported
AM5

Built-in Processor
No

Supported CPU
AMD Ryzen 7000 Series

Generation
Not Applicable


Memory Support
Memory Type
DDR5

Memory MHz
6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC)MHz non-ECC, un-buffered memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR5 DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 slot (1 x M.2 PCIe 5.0 x4, supports 22110/2280, 3 x M.2 PCIe 4.0 x4, supports 2280/2260)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
3 x PCI-E x16, 1 x PCI-E x1 slot


Audio & Video
Audio Chipset
10/100/1000/2500Mbps

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8125BG

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
Yes

WiFi Technology
AMD Wi-Fi 6E

Bluetooth
Bluetooth 5.2


Ports
USB Port
4 x USB 3.2 Gen 1 Type A (Rear), 2 x USB 3.2 Gen 2 Type A, 1 x USB 3.2 Gen 2 Type C , 1 x USB 3.2 Gen 2 Type C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
6 x SATA

Thunderbolt
No

TPM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 10

RGB Support
RGB

RGB Connector
2 x RGB LED connector

Approx. Power Consumption
70W

Form Factor
ATX


Compatibility
Supported Operating System
Windows 11, Windows 10

Compatible Products
Sockets Supported AM5: AMD Ryzen 7000 Series


Warranty
Warranty Details
3 year


Additional Info
Feature
Optimum Thermal Solution: Wavy Fin Design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, double-sided M.2 Shield Frozr, and Frozr AI software ensure the extreme performance with low temp. Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience. EZ Debug LED: Easiest way to troubleshoot. Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Others

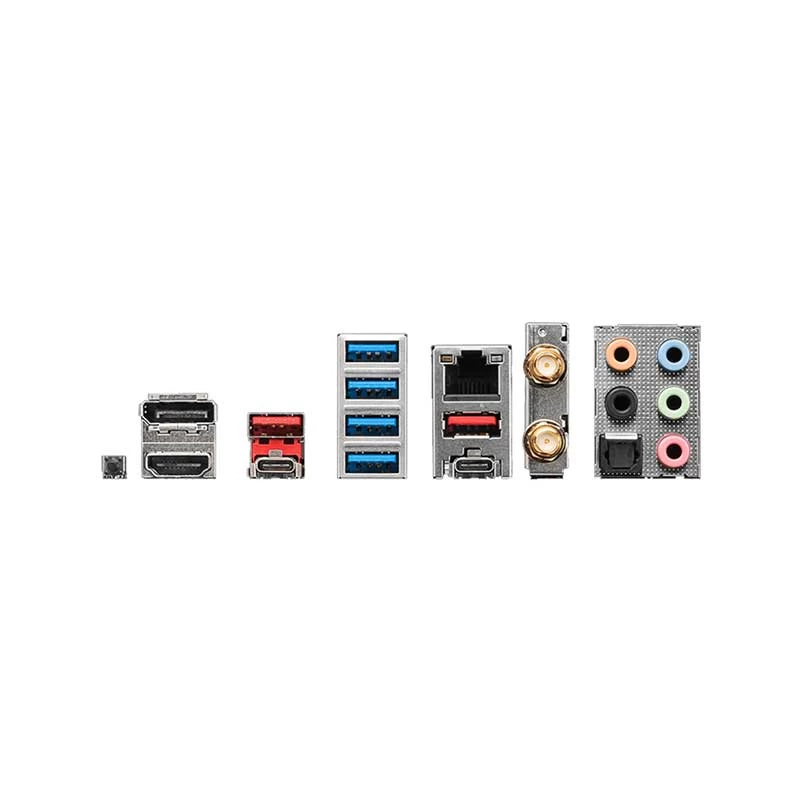

InternalL I/O: 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 4x USB 2.0, Back Panel Port: Audio connectors, Flash BIOS Button, S/PDIF-OUT. Supports MU-MIMO TX/RX,

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
