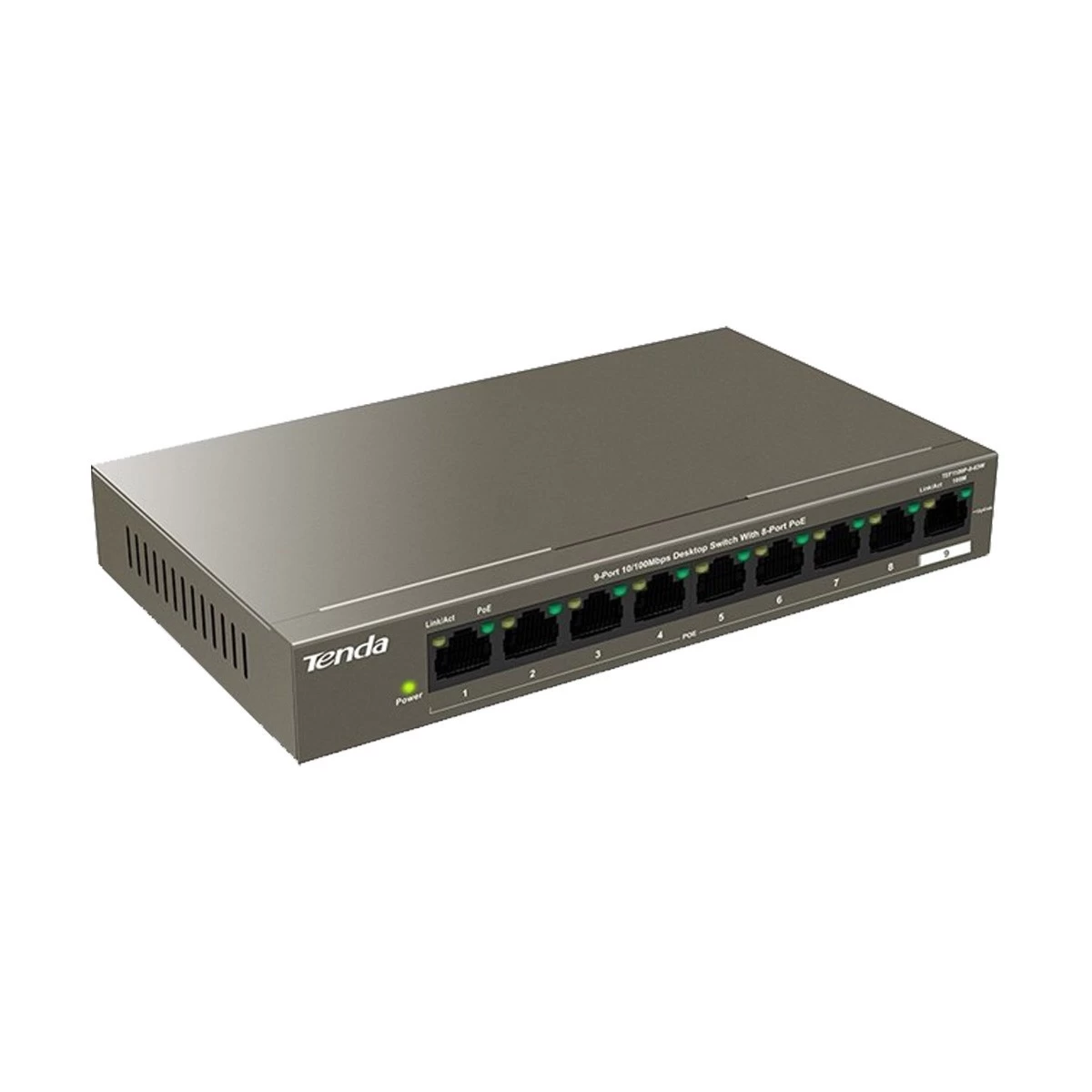

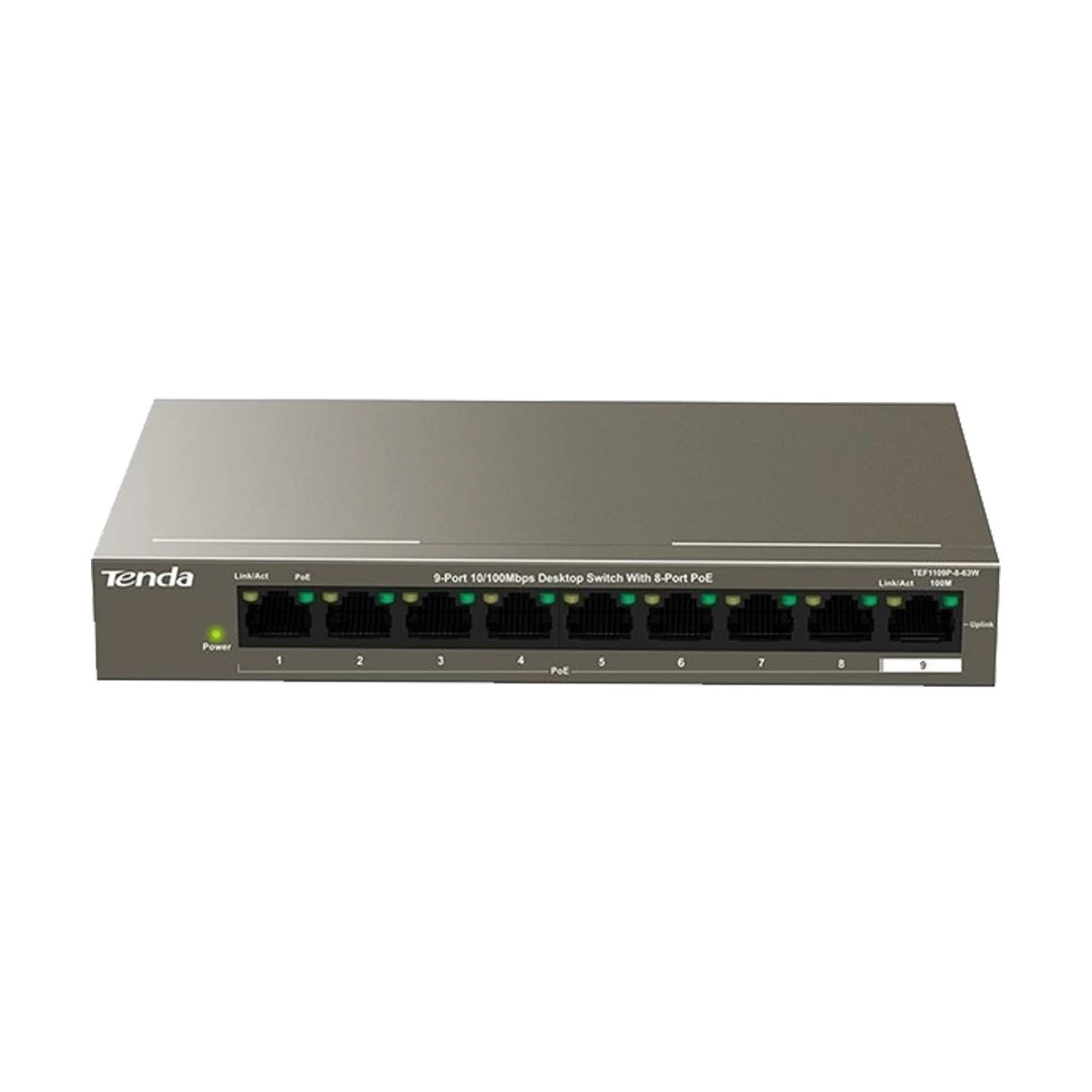

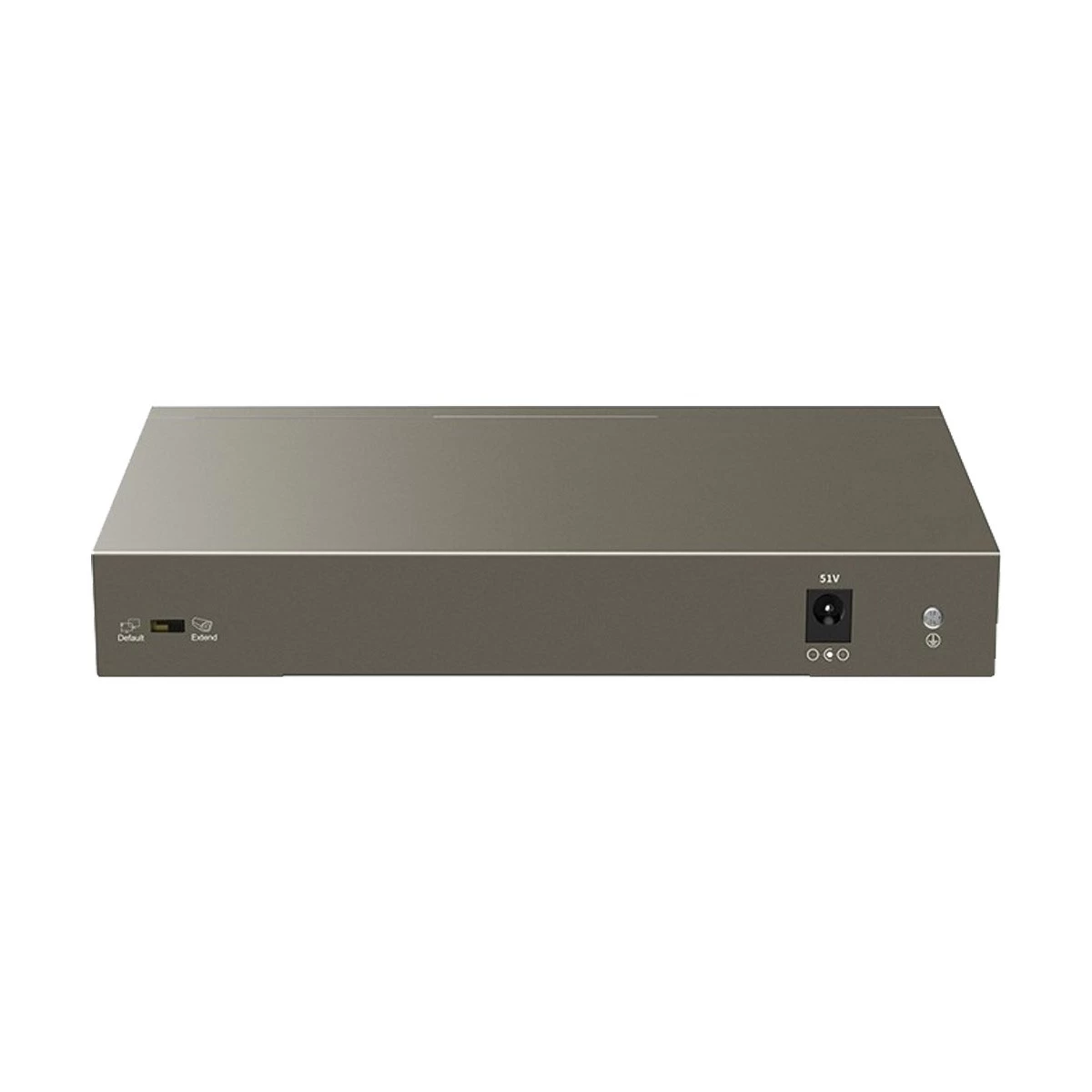

Tenda TEF1109P 9 Port (8-Port PoE) 10/100Mbps Desktop Switch #TEF1109P-8-63W
Product Id: 29.05.744.04
Brand
Tenda
Quick Overview
- Type - Network Switch
- Number of Total Port - 9 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3,3u,3x,3ab,3af,3at
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
General
Brand
Tenda
Model
Tenda TEF1109P
Type
Network Switch
Part No
TEF1109P-8-63W
Ports & Slots
Number of Total Port
9 Port
PoE Port
8
Technical Info
PoE
Yes
Manageability
Unmanaged
Interface(s)
8 x 10/100 Base-TX Ethernet ports (Data/Power), 1 x 10/100 Base-TX Ethernet ports (Data)
Network Standards
IEEE 802.3,3u,3x,3ab,3af,3at
Data Transfer Rate
10/100 Mbps
Switching Capacity
1.8 Gbit/s
MTBF
>-50,000 hours
Physical Description
Fan/Fanless
Fanless
Indicators
9 x Link/Ack LED indicators, 1 x Power LED indicator
Form Factor
Desktop/Wall Mounting
Dimension
177.5 x 104 x 26mm
Packet Contents
1 x Tenda TEF1109P Switch, 1 x User manual
Power
Power Supply
AC: 100 - 240V - 50/60Hz DC: 51V /1.25A (Power Adapter)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Part no: TEF1109P-8-63W, Packet forwarding rate: 1.34Mpps, Buffer: 1.25Mb, MAC address table: 4K, PoE budget: Single port: AF: 15.4W, AT: 30W, Whole device: 58W, MTBF: 50,000 hours, Indicator: Link/Act, PoE Status, Power, 100M, Fixed Port: 8 x 10/100Base-TX RJ45 Ports, 1 x 10/100Base-TX RJ45 Port, Lightning Protection: 6KV, Wire-speed forwarding: Support, Switching Capacity: 1.8 Gbit/s, Input Voltage AC: 100???240V - 50/60Hz, DC???51V /1.25A Power Adapter), Certification: 3C, FCC, CE, RHOS, Dimension: 177.5 x 104 x 26 mm
Specialty
TEF1109P-8-63W has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum PoE output power of 30W to each port and 58W to the whole device.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Tenda TEF1109P Network Switch In Bangladesh
Tenda TEF1109P 9 Port Desktop Switch
TEF1109P-8-63W / Switch / 9-Port 10/100Mbps Desktop Switch With 8-Port PoE
TEF1109P-8-63W has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum PoE output power of 30W to each port and 58W to the whole device.
Lead security transmission
power supply to a higher level
TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE
6KV Lightning Protection | long distance transmission
Maximum PoE Output Power 58W | PoE power up to 30W for each PoE port
Up to 250 meters long distance transmission,
beyond hundred meters transfer limit
Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distanceof each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters; Providing gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers.
6KV lighting protection PoE switch
is the real monitoring private switch
In real monitoring project, cameras are often installed outdoor or in a higher position, which also increases the probability of lightning shock toward the cameras and PoE switches. Therefore, some of the equipments may be damaged and even the whole local area network (LAN) may be paralyzed.
Tenda TEF11 series switches have professional lightning protection design – 6kV port and power supply thunder prevents. These two protection design can effectively inhibit the lightning current from the network cable and power supply, which is equivalent to add a security Walls to the entire network monitoring system. And the test standards are far higher than the requirements of the state CCC. In the thunderstorms, the monitoring network can also provide stable and reliable services to the monitoring network and ensure the normal transmission of the images.
Outstanding PoE Power Supply
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum power supply of 30W to each port and 58W to the whole device.
More
Brand - Tenda, Model - Tenda TEF1109P, Type - Network Switch, Number of Total Port - 9 Port, PoE - Yes, Manageability - Unmanaged, PoE Port - 8, Interface - 8 x 10/100 Base-TX Ethernet ports (Data/Power), 1 x 10/100 Base-TX Ethernet ports (Data), Network Standards - IEEE 802.3, 3u, 3x, 3ab, 3af, 3at, Data Transfer Rate (Mbps) - 10/100 Mbps, Switching Capacity - 1.8 Gbit/s, Fan/Fanless - Fanless, Indicator - 9 x Link/Ack LED indicators, 1 x Power LED indicator, MTBF - >-50,000 hours, Power Supply - AC: 100 - 240V - 50/60Hz DC: 51V /1.25A (Power Adapter), Form Factor - Desktop/Wall Mounting, Dimension - 177.5 x 104 x 26mm, Others - Part no: TEF1109P-8-63W, Packet forwarding rate: 1.34Mpps, Buffer: 1.25Mb, MAC address table: 4K, PoE budget: Single port: AF: 15.4W, AT: 30W, Whole device: 58W, MTBF: 50,000 hours, Indicator: Link/Act, PoE Status, Power, 100M, Fixed Port: 8 x 10/100Base-TX RJ45 Ports, 1 x 10/100Base-TX RJ45 Port, Lightning Protection: 6KV, Wire-speed forwarding: Support, Switching Capacity: 1.8 Gbit/s, Input Voltage AC: 100???240V - 50/60Hz, DC???51V /1.25A Power Adapter), Certification: 3C, FCC, CE, RHOS, Dimension: 177.5 x 104 x 26 mm, Specialty - TEF1109P-8-63W has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum PoE output power of 30W to each port and 58W to the whole device., Part No - TEF1109P-8-63W, Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
