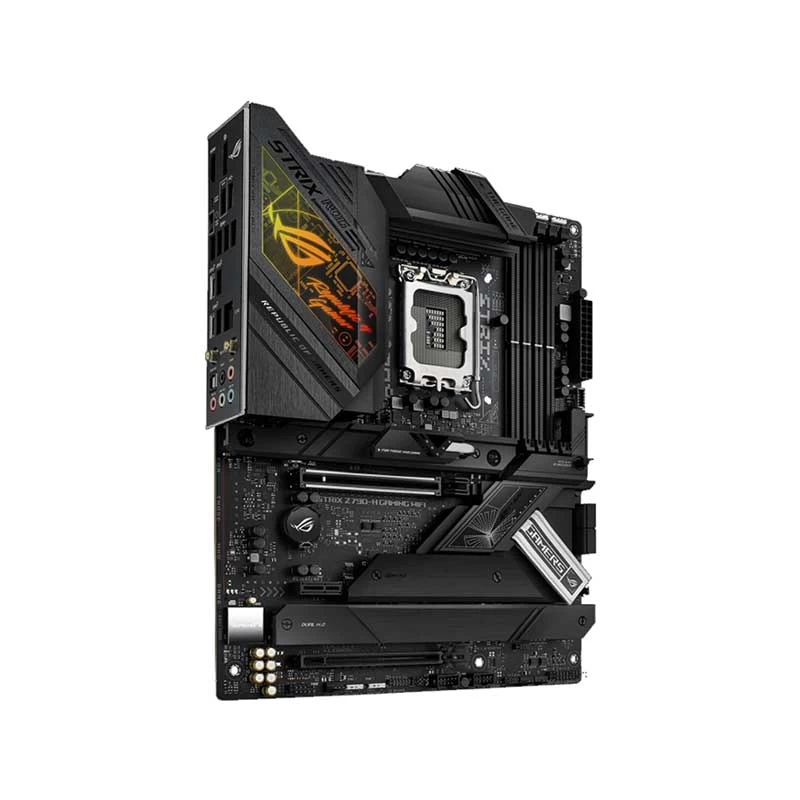

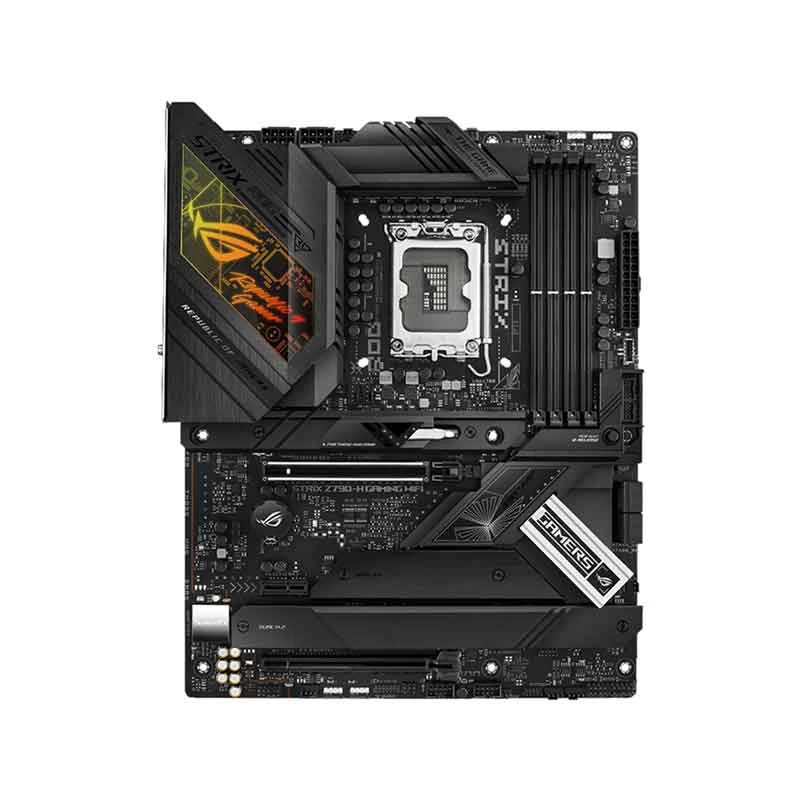

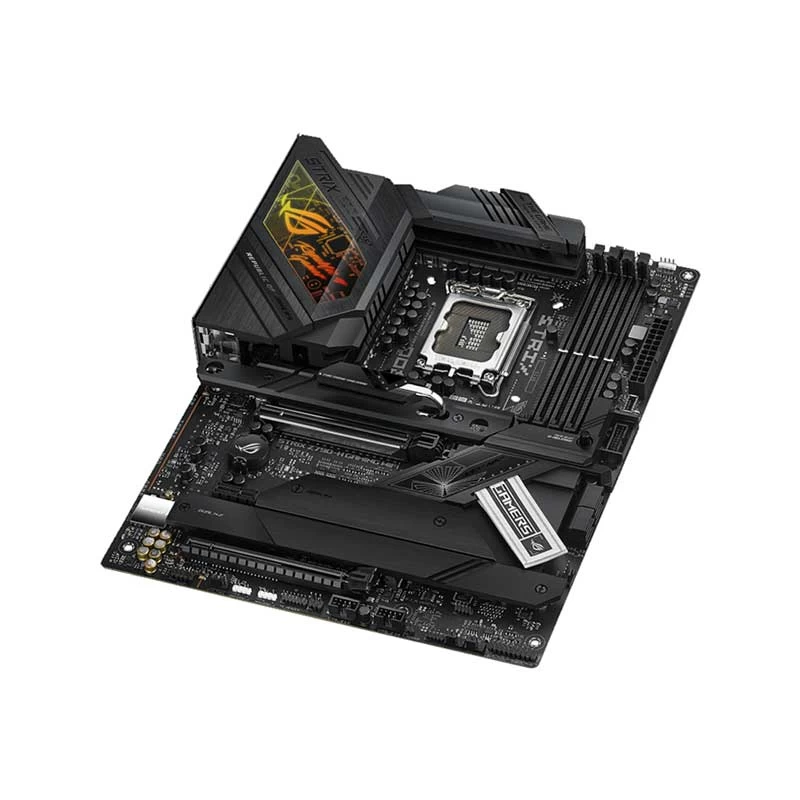

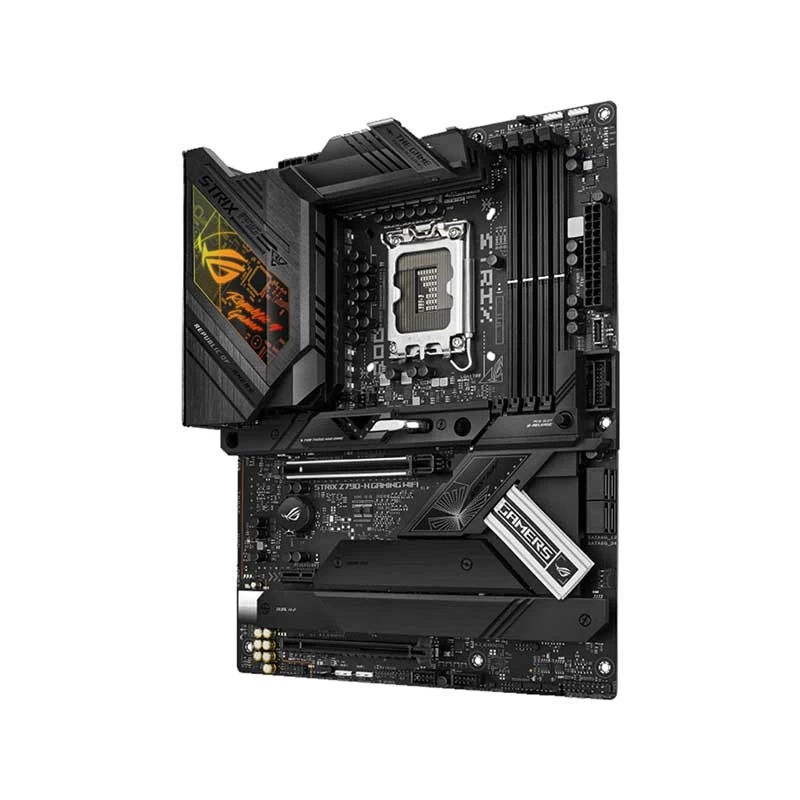

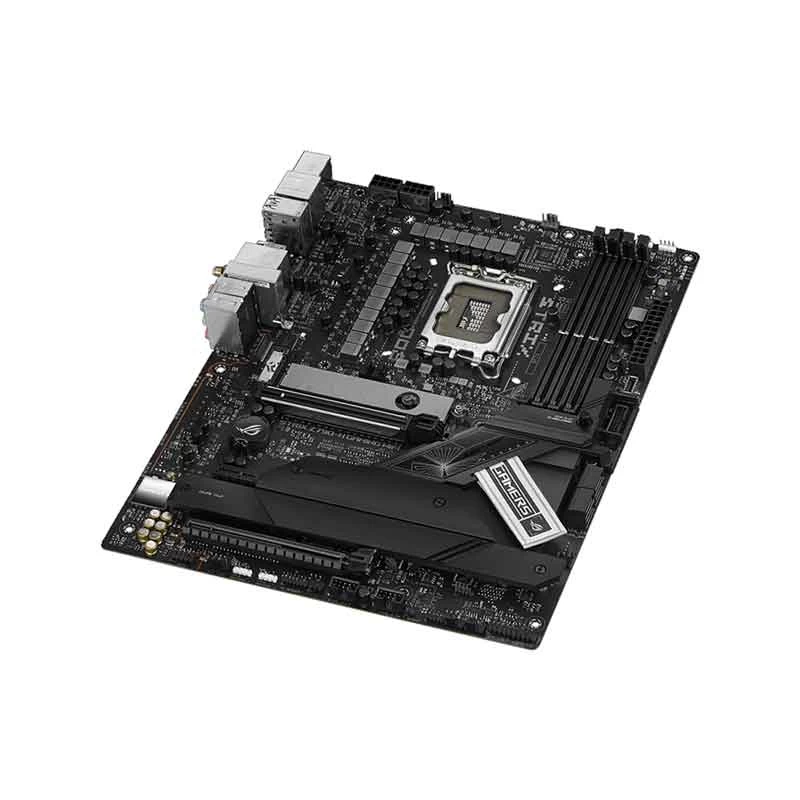

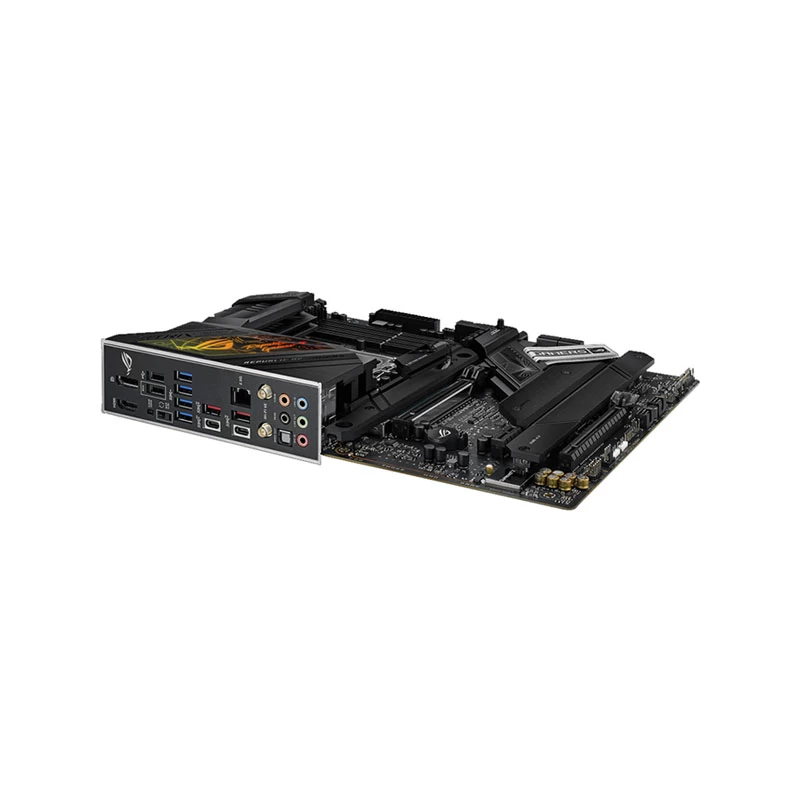

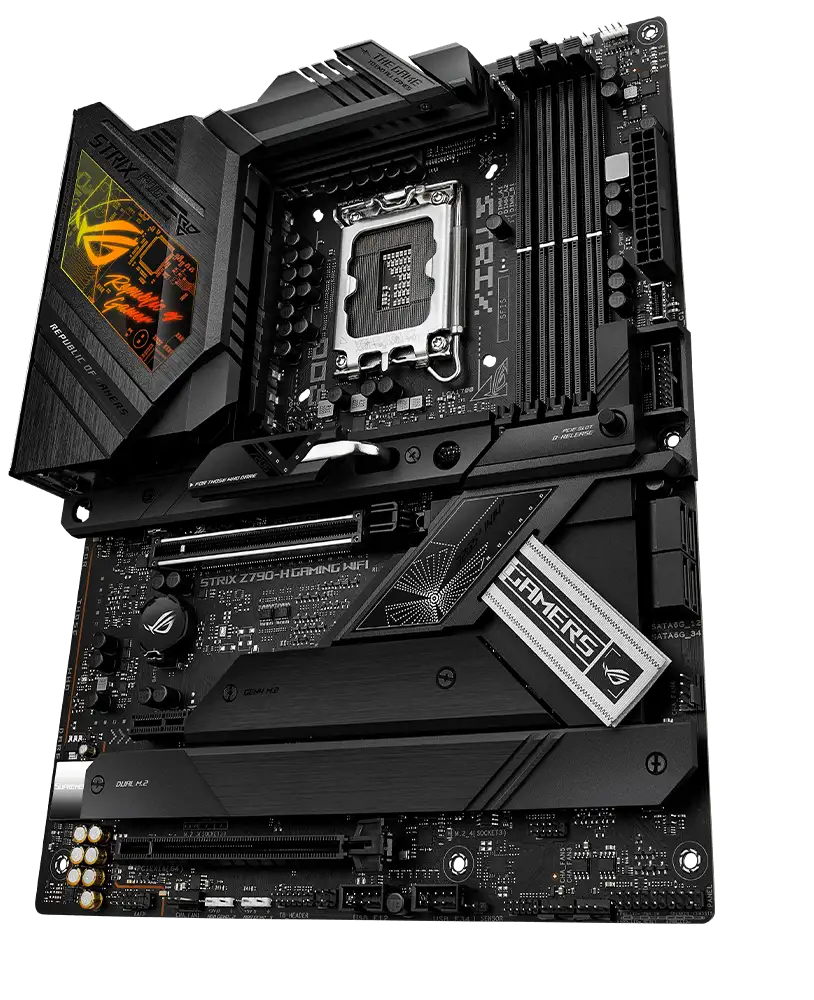

Asus ROG STRIX Z790-H GAMING (Wi-Fi 6E) DDR5 Motherboard
Product Id: 02.01.006.445
Brand
Asus
Regular Price Tk 54,580
Monthly EMI Tk 4,548
Special Price Tk 50,500
Quick Overview
- Chipset - Intel Z790
- Memory Max. - 128GB
- Memory Slot - 4
- Sockets Supported - LGA1700
- Supported CPU - 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Generation - 12th/13th
General
Brand
Asus
Model
Asus ROG STRIX Z790-H GAMING (Wi-Fi 6E)
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel Z790
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Generation
12th/13th
Memory Support
Memory Type
DDR5
Memory MHz
7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Memory Channel
Dual
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
4
M.2/SSD Expansion Slot Details
4 x M.2 (2 x M.2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4), 2 x M.2 slot (Key M), type 2242/2260/2280)
Graphics
Graphics
Graphics
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x 16 (Intel 13th & 12th Gen Processors), 1 x PCIe 4.0 x 16 (supports x4 or x4/x4), 1 x PCIe 3.0 x1 (Intel Z790)
Audio & Video
Audio Chipset
ROG SupremeFX Audio CODEC S1220A
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Intel 2.5Gb Ethernet
LAN Speed (Mbps)
10/100/1000/2500 Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Bluetooth
Bluetooth 5.3
Ports
USB Port
1 x USB 3.2 Gen Type-C, 3 x USB 3.2 Gen 2 (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
2 x SATA
Thunderbolt
1
Technical Info
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0/1/5/10
RGB Support
RGB
RGB Sync
AURA Sync
RGB Connector
1 x Aura RGB header
Approx. Power Consumption
90W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11, 10
Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen & 13th Gen)
Warranty
Warranty
3 Year
Warranty Details
3 Years Replacement Warranty
Additional Info
Feature
Extreme Engine Digi+: 5K Black Metallic Capacitors, ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, ASUS Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design, ASUS EZ DIY: CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM, Software Features: ROG Exclusive Software: GameFirst VI, ROG CPU-Z, Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion, Sonic Radar III, DTS Sound Unbound, ASUS Exclusive Software: Armoury Crate, , Aura Creator- Aura Sync, Power Saving, Norton 360 for Gamers, MyAsus, WinRAR.
Others

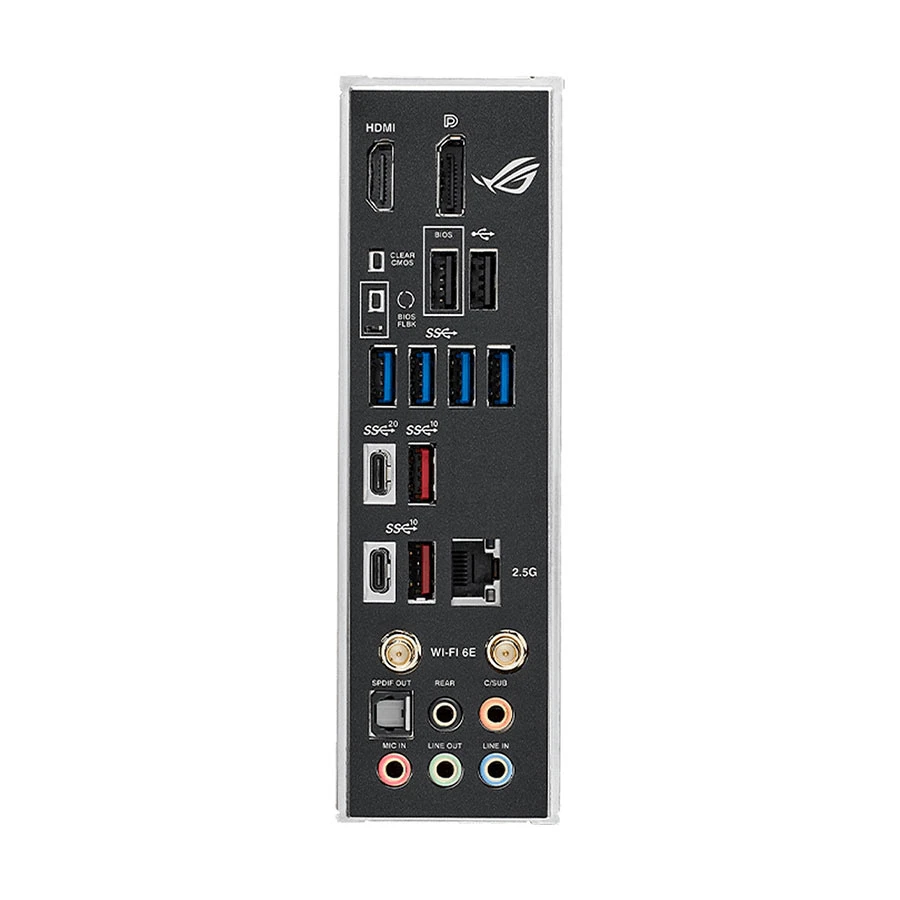

Internal I/O Connectors: 1 x 4-pin CPU Fan header,1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connectors, 3 x Addressable Gen 2 headers, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, Back Panel I/O Ports: 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x Clear CMOS button.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus ROG STRIX Z790-H GAMING (Wi-Fi 6E) Motherboard In Bangladesh
Strike stealthily with the powerfully potent ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel® 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2x2 fully flesh out connectivity.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
* WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
What is the price of Asus ROG STRIX Z790-H GAMING (Wi-Fi 6E) Motherboard In Bangladesh?
The price of Asus ROG STRIX Z790-H GAMING (Wi-Fi 6E) Motherboard starts from 50,500 . The price may vary due to your customization and product availability. You can buy Asus ROG STRIX Z790-H GAMING (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
