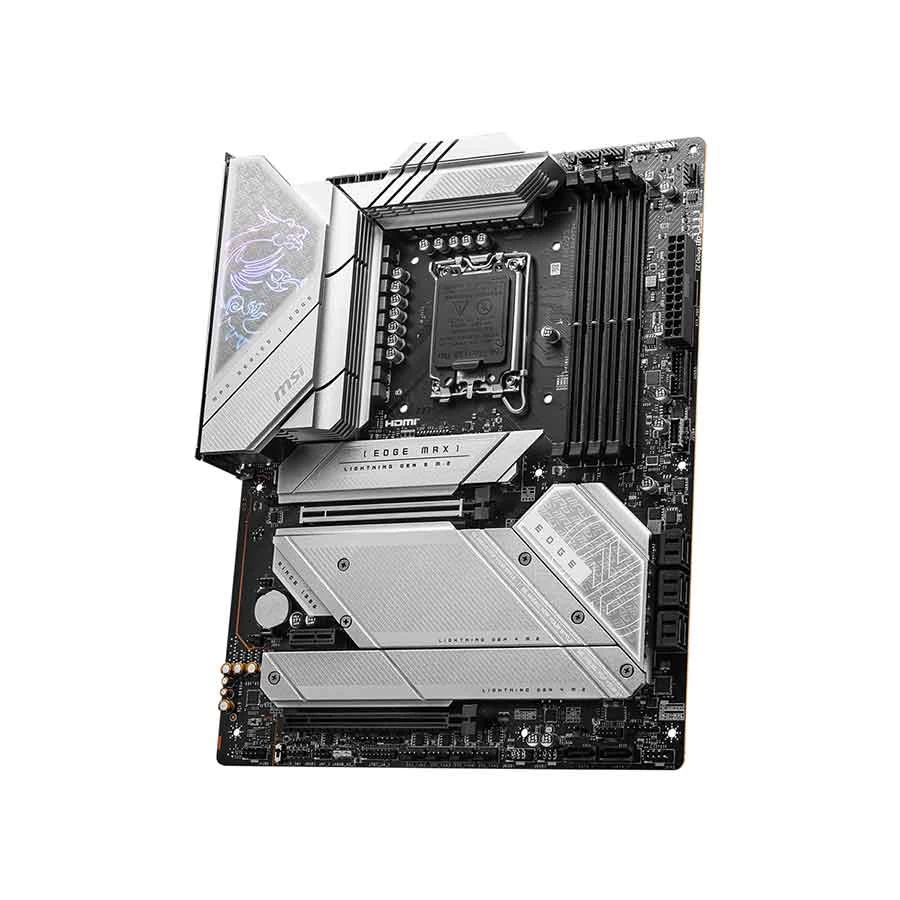

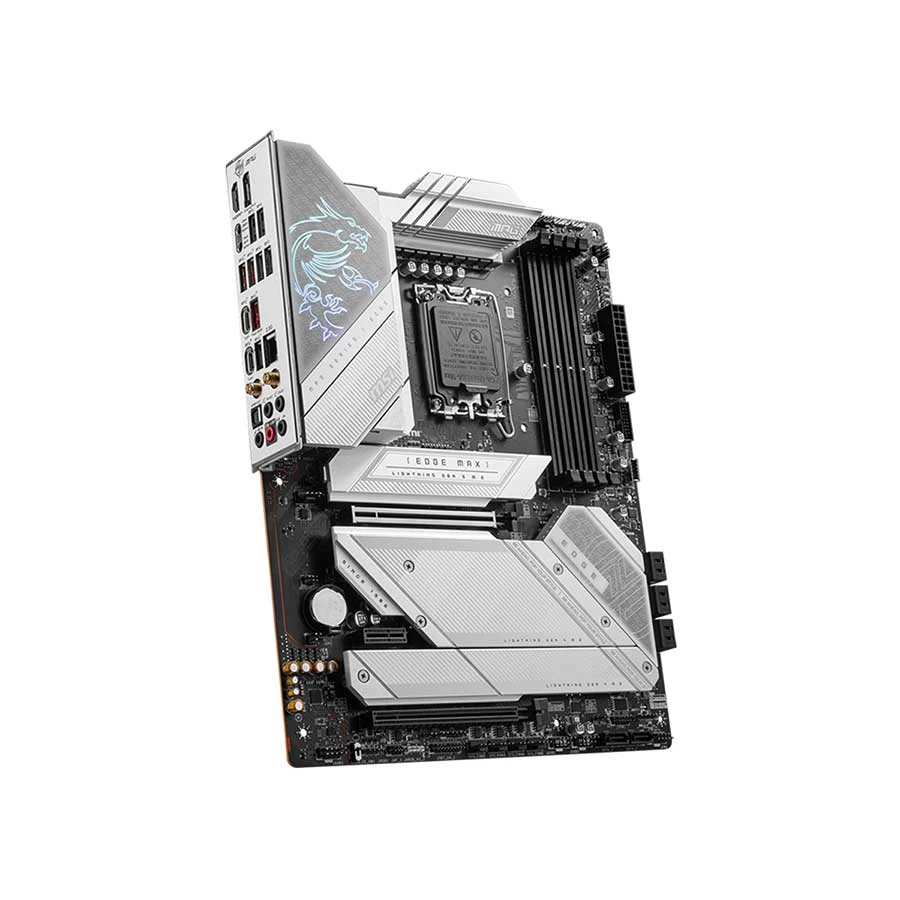

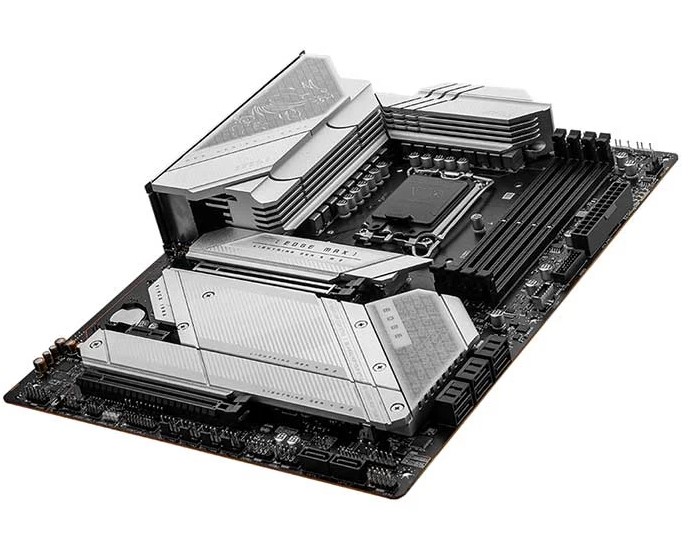

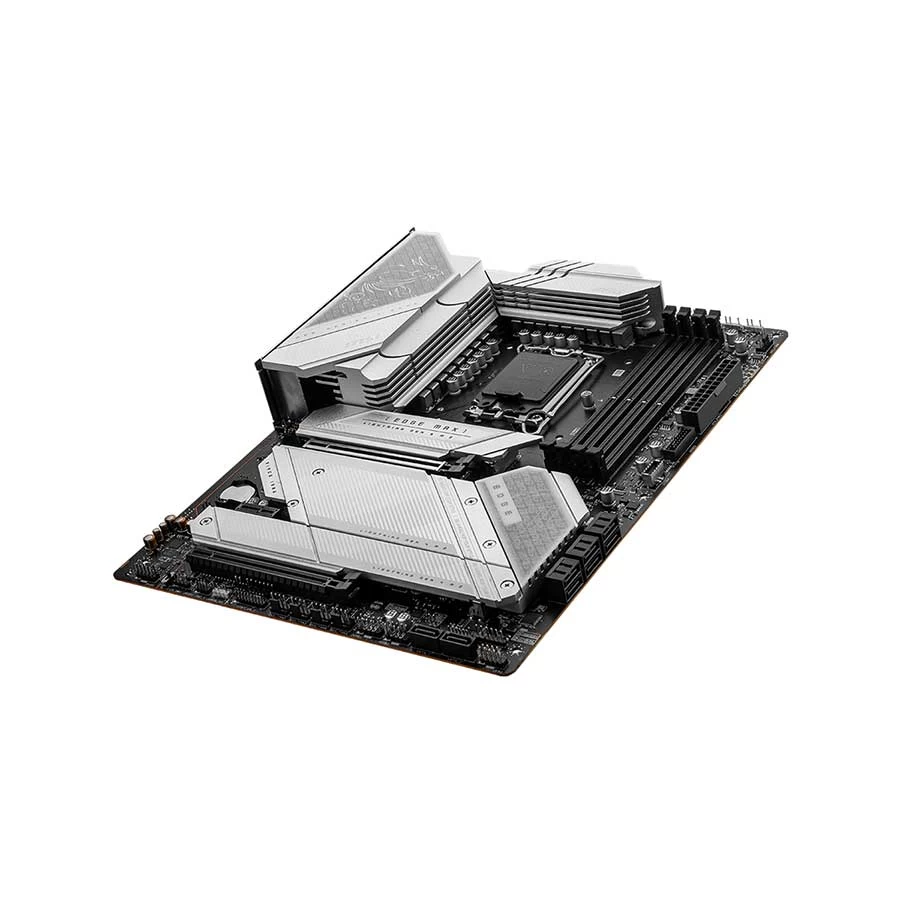

MSI MPG Z790 EDGE TI MAX (Wi-Fi 7) DDR5 Intel Gaming Motherboard

Item: MSI MPG Z790 EDGE TI MAX (Wi-Fi 7) DDR5 Intel Gaming Motherboard
Rating: 5
Author: Verified Buyer

11 reviews

Product Id: 02.01.033.500

Out Of Stock

See similar model

Quick Overview

Form Factor - ATX
Chipset - Intel Z790
Sockets Supported - LGA1700
Supported CPU - Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Generation - 12th/13th/14th
Memory Slot - 4
Memory Max. - 192GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI MPG Z790 EDGE TI MAX (Wi-Fi 7)

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

192GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11, 10

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI MPG Z790 EDGE TI MAX (Wi-Fi 7)

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

Generation

12th/13th/14th

Memory Support

Memory Type

DDR5

Memory MHz

7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Memory Slot

Memory Max.

192GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

5 x M.2 (1 x M.2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices, 2 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices)

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

2 x PCI-E x16, 1 x PCI-E x1 slot (PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset))

Audio & Video

Audio Chipset

Realtek ALC4080 Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Intel 2.5Gbps LAN

LAN Speed (Mbps)

10/10/1000/2500Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 7

Bluetooth

Bluetooth 5.4

Ports

USB Port

4 x USB 3.2 Gen 1 Type-A, 4 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2x2 Type-C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

8 x SATA

Thunderbolt

TPM Port

Yes

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

RGB

RGB Connector

1x RGB LED connector(JRGB)

Approx. Power Consumption

70W

Form Factor

ATX

Compatibility

Supported Operating System

Windows 11, 10

Compatible Products

Core i3, Core i5, Core i7, Core i9 (12th Gen, 13th Gen & 14th Gen)

Warranty

3 year

Additional Info

Feature

Premium Thermal Design: Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Screwless M.2 Shield Frozr: The patent-pending design provides the easiest way of M.2 installation. Install or uninstall your M.2 and Shield Frozr without tools and screws. Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E. 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience. Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. Audio Boost 5: Isolated audio with a high quality audio processor for the most immersive gaming experience Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.

Others

Internal I/O: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x ARGB+FAN Header (JAF_1), Back Panel Ports: Audio Connectors, Optical S/PDIF Out, Clear CMOS, Flash BIOS, Led Feature: 4x EZ Debug LED.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI MPG Z790 EDGE TI MAX (Wi-Fi 7) Motherboard In Bangladesh

MPG Z790 EDGE TI MAX WIFI

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR5 Memory, up to 7800+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation
