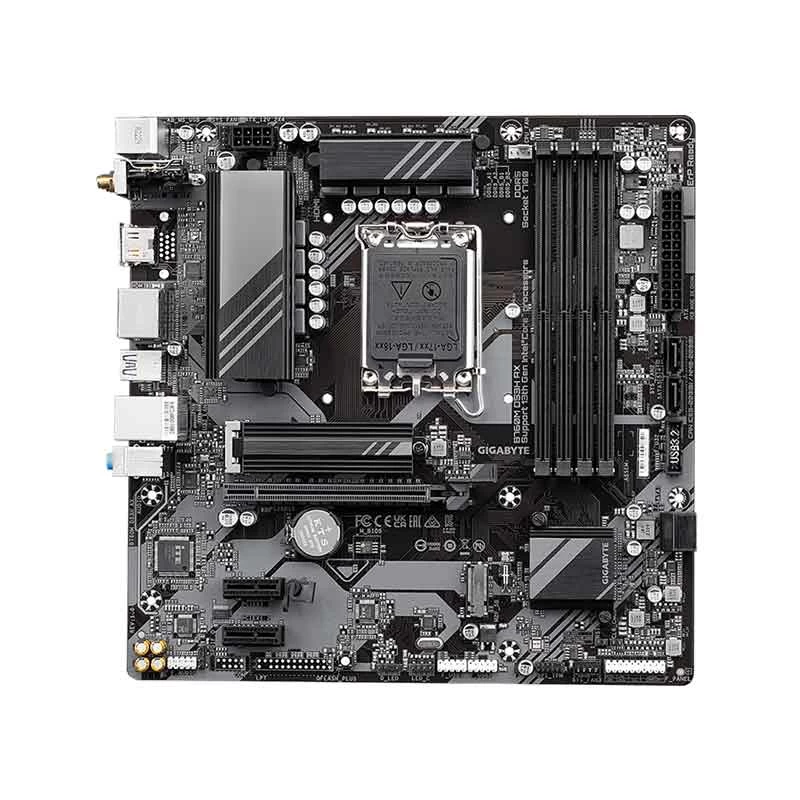

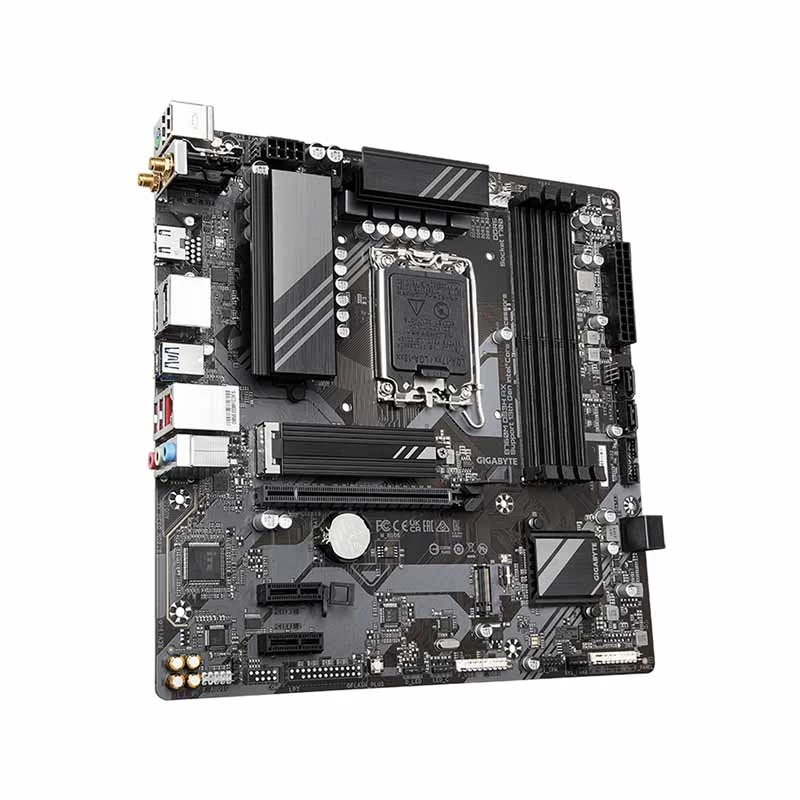

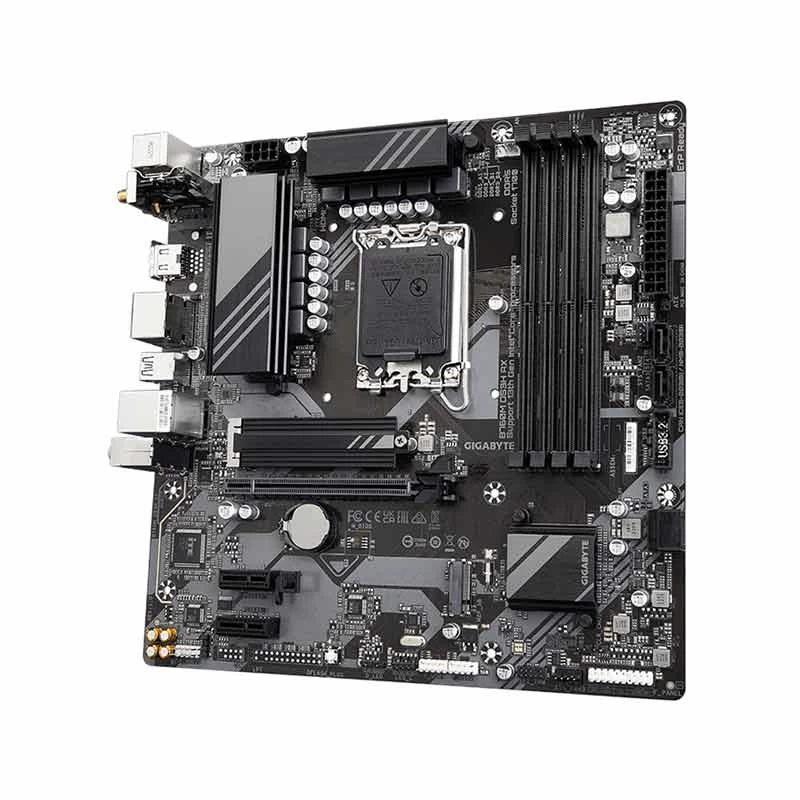

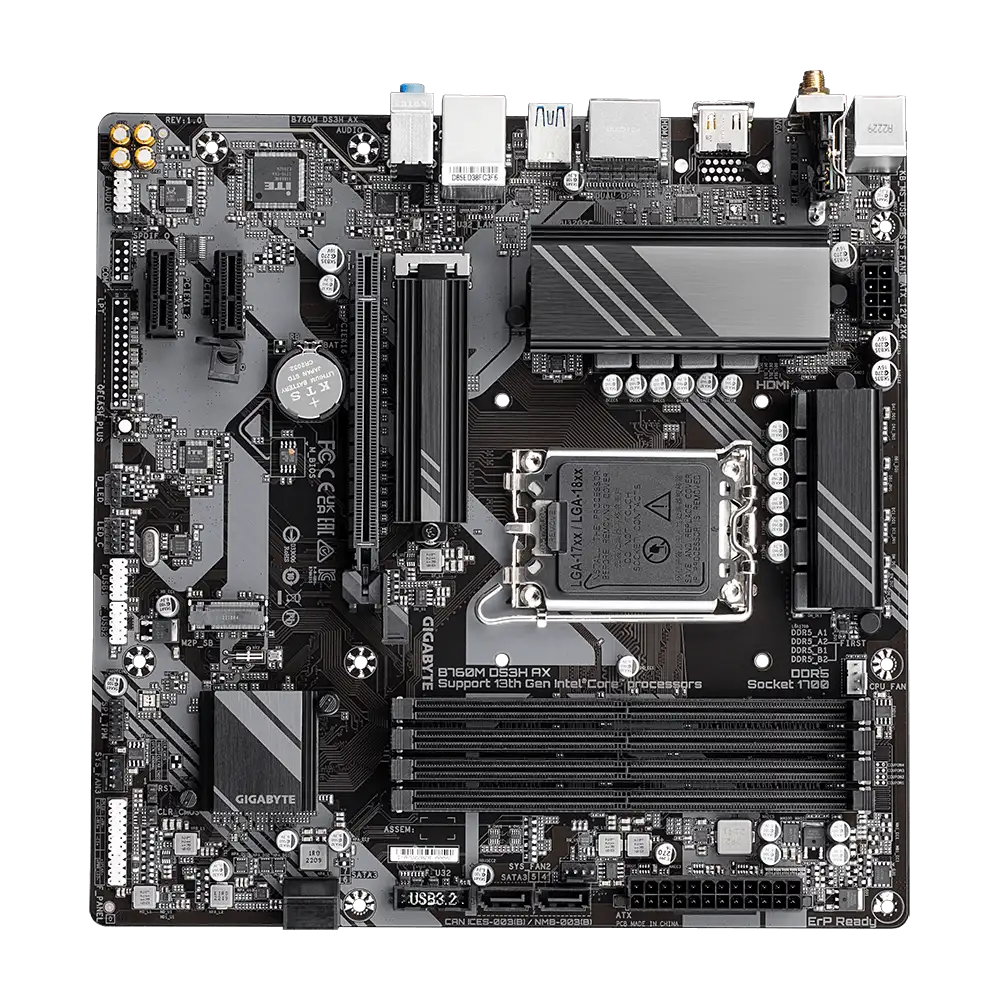

Gigabyte B760M DS3H AX (Wi-Fi 6E) DDR5 Intel Motherboard (Bundle with PC)

Product Id: 02.01.018.486

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel B760
  • Sockets Supported - LGA1700
  • Supported CPU - Support for the 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
  • Memory Slot - 4
  • Memory Max. - 192GB
General
Brand
Gigabyte

Model
Gigabyte B760M DS3H AX (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Support for the 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC & Un-buffered Memory.

Memory Channel
Dual

Memory Slot
4

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB))


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x 16 (PCIe 4.0 and running at x16), 2 x PCI Express x 1 (PCIe 3.0 and running at x 1)


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip

LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6E

Bluetooth
Bluetooth 5.3


Ports
USB Port
2 x USB 2.0/1.1, 3 x USB 3.2 Gen 1, 1 x USB Type-C, with USB 3.2 Gen 2 support

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
1 x RGB LED strip header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
Core i3, Core i5, Core i7,Core i9, Pentium Gold (12th Gen, 13th Gen & 14th Gen)


Warranty
Warranty Details
3 year


Additional Info
Feature

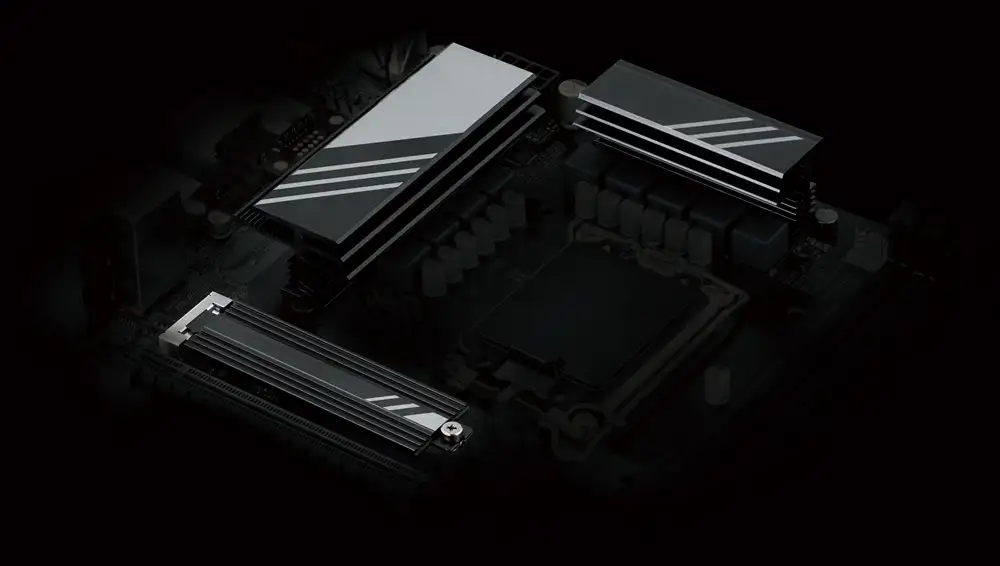

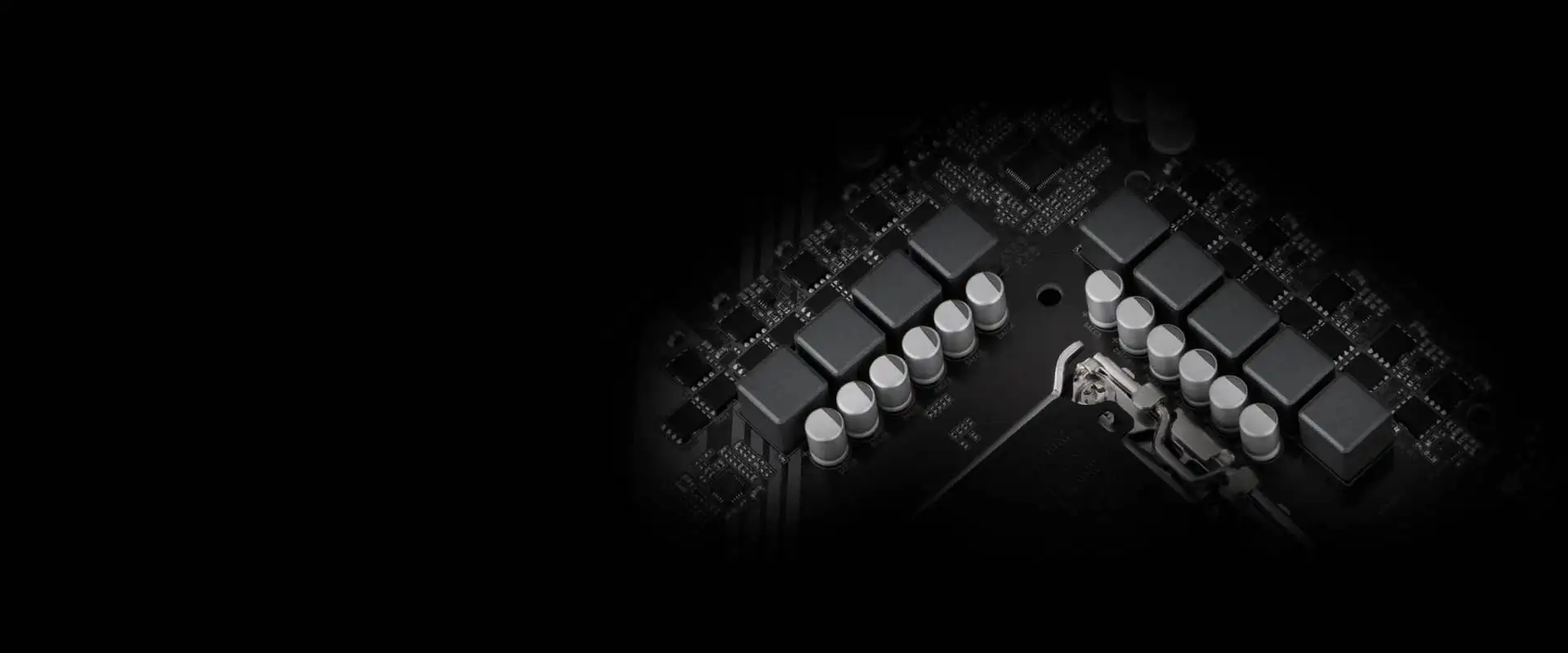

Unique Features: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, 6+2+1 Phases Hybrid Digital VRM Design, Enlarged Surface Design of MOSFET Heatsink greatly improves heat dissipation.

Others

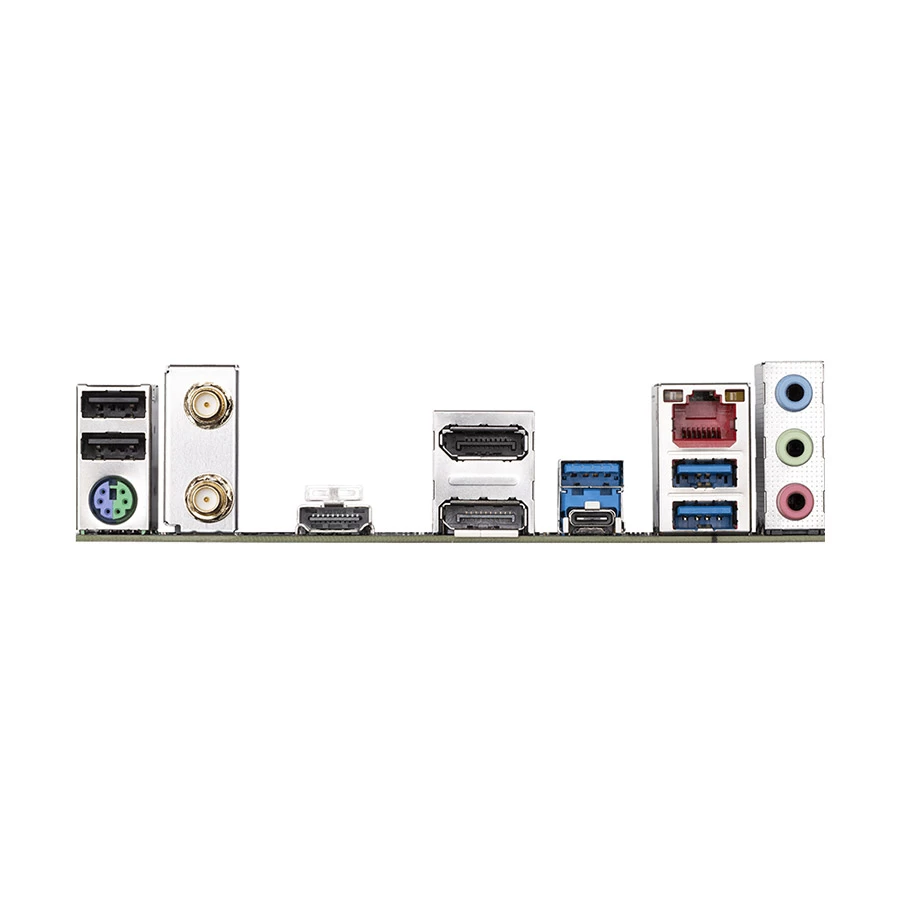

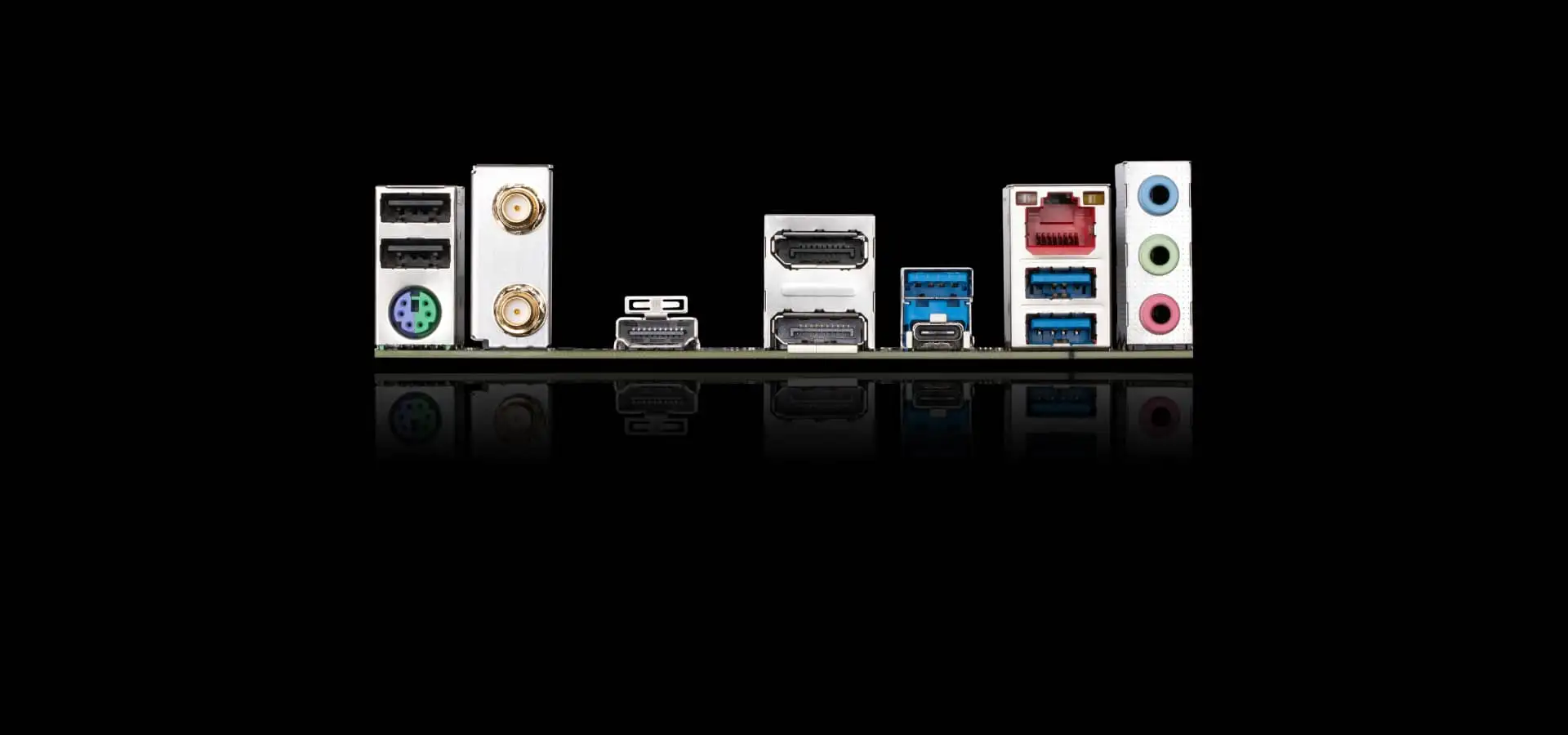

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (2T2R), 1 x RJ-45 port, 3 x audio jacks, I/O Controller: iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
