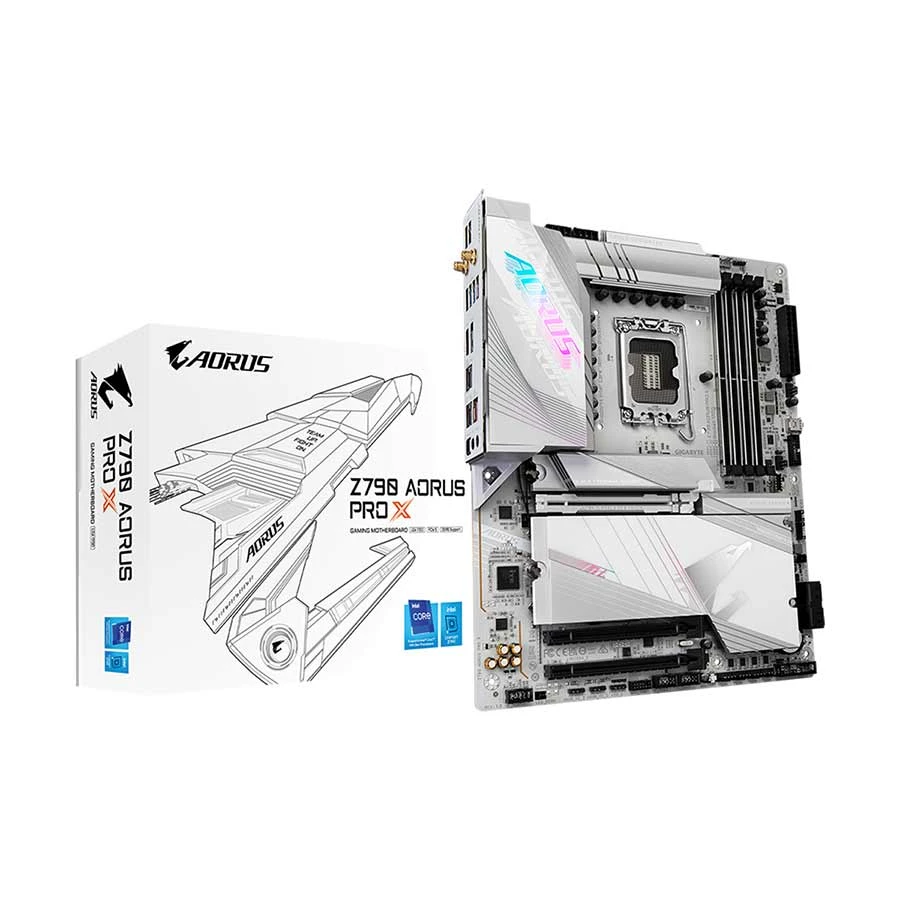

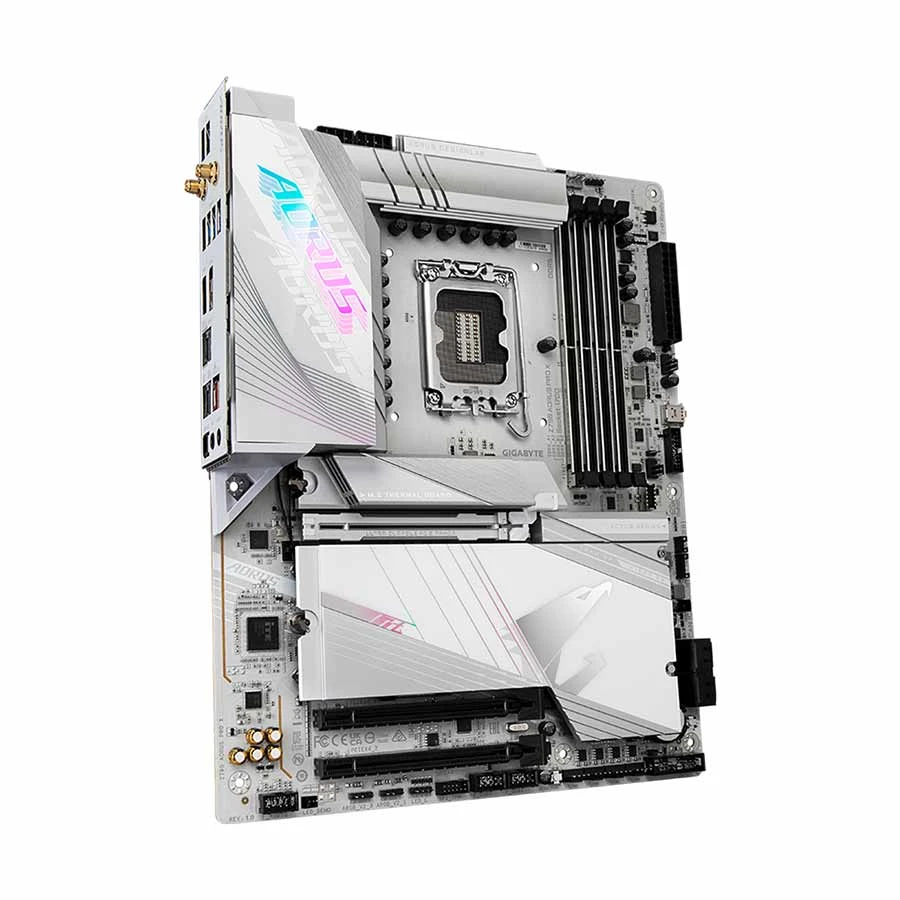

Gigabyte Z790 AORUS PRO X (Wi-Fi 7) DDR5 Gaming Motherboard

Product Id: 02.01.018.500

Brand Gigabyte

Regular Price Tk 56,200 Monthly EMI Tk 4,683
Special Price Tk 52,000

Quick Overview

  • Chipset - Intel Z790
  • Sockets Supported - LGA1700
  • Supported CPU - 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors.
  • Generation - 12th/13th/14th
  • Memory Slot - 4
  • Memory Max. - 192GB
General
Brand
Gigabyte

Model
Gigabyte Z790 AORUS PRO X (Wi-Fi 7)

Body Color
Silver


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors.

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
8266(O.C)/ 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/ 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000 MHz ECC & non-ECC Un-buffered memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR5 DIMM

Memory Max.
192GB

Memory Max. (Additional Info)
Up to 192 GB (48 GB single DIMM capacity)

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
5

M.2/SSD Expansion Slot Details
5 x M.2 (1 x M.2 M key type 25110/2280 support PCIe 5.0 x4/x2 SSD), (1 x M.2 M key type 22110/2280 support PCIe 4.0 x4/x2 SSD), (1 x M.2 M key type 22110/2280 support PCIe 4.0 x4/x2 SSD), (1 x M.2 M key type 2280 support PCIe 4.0 x4/x2 SSD), (1 x M.2 M key type 2280 support SATA and PCIe 4.0 x4/x2 SSD)


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1), 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_1)


Audio & Video
Audio Chipset
Realtek ALC1220-VB CODEC High Definition Audio

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek 5GbE LAN chip

LAN Speed (Mbps)
100/1000/2500/5000 Mb/s

WiFi
Yes

WiFi Technology
MediaTek Wi-Fi 7 MT7927, RZ738 (For PCB rev. 1.0) supporting a, b, g, n, ac, ax, be 2.4/5/6 GHz carrier frequency bands

Bluetooth
Bluetooth 5.3

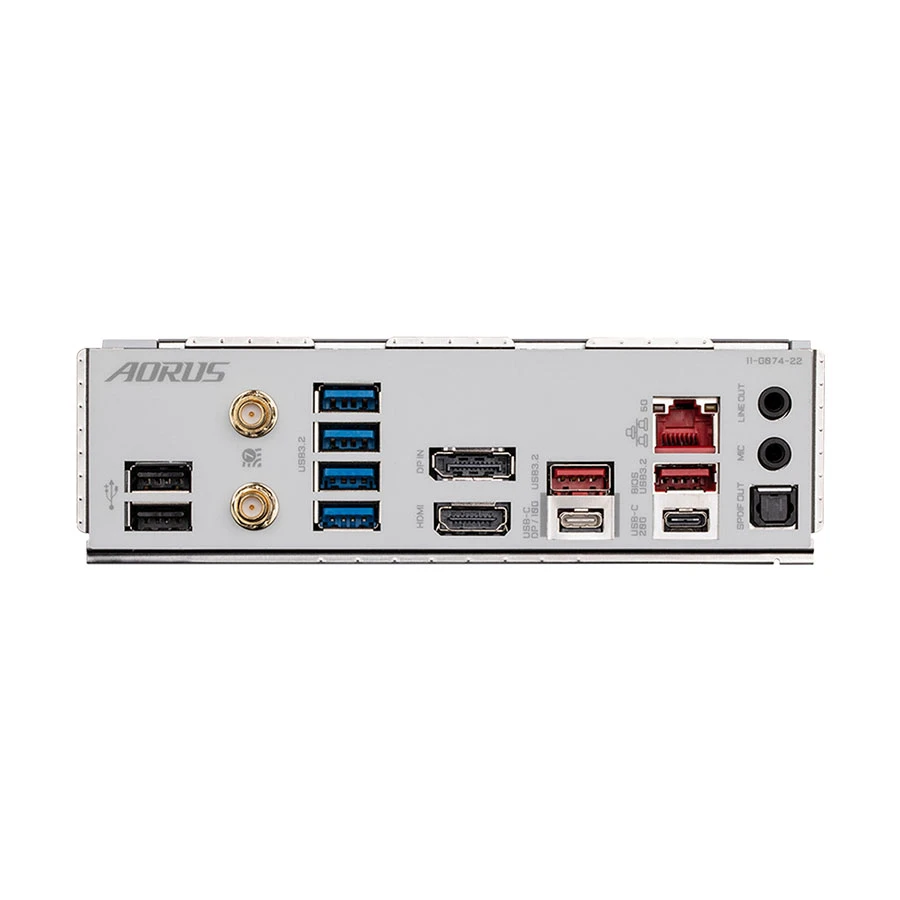

Ports
USB Port
1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A (red), 4 x USB 3.2 Gen 1 Type-A.

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
2

TPM Port
1

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
1 x RGB LED strip headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10/ 11


Warranty
Warranty Details
3 year


Additional Info
Feature
Supports Intel Core 14th and 13th processors, UC BIOS: User-Centred intuitive UX with Quick Access function, Ultra-Fast Storage: 5xM.2 slots, including 1x PCIe 5.0 x4, Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL, Fast Networking: 5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna, Extended Connectivity: HDMI, DP IN, Front & Rear USB-C 20Gb/s, High-Res Audio: ALC1220 & Audiophile Grade Capacitors.

Others
MediaTek Wi-Fi 7 MT7927, RZ738 (For PCB rev. 1.0), 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands, Internal I/O Connectors- 4 x system fan headers, 2 x system fan/water cooling pump headers, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 5 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 2x2 support, 1 x USB Type-C port (DisplayPort), with USB 2.0 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x noise detection header, 2 x Thunderbolt add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only), 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 2 x temperature sensor headers, 1 x Clear CMOS jumper. H/W Monitoring- Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, Noise detection.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
