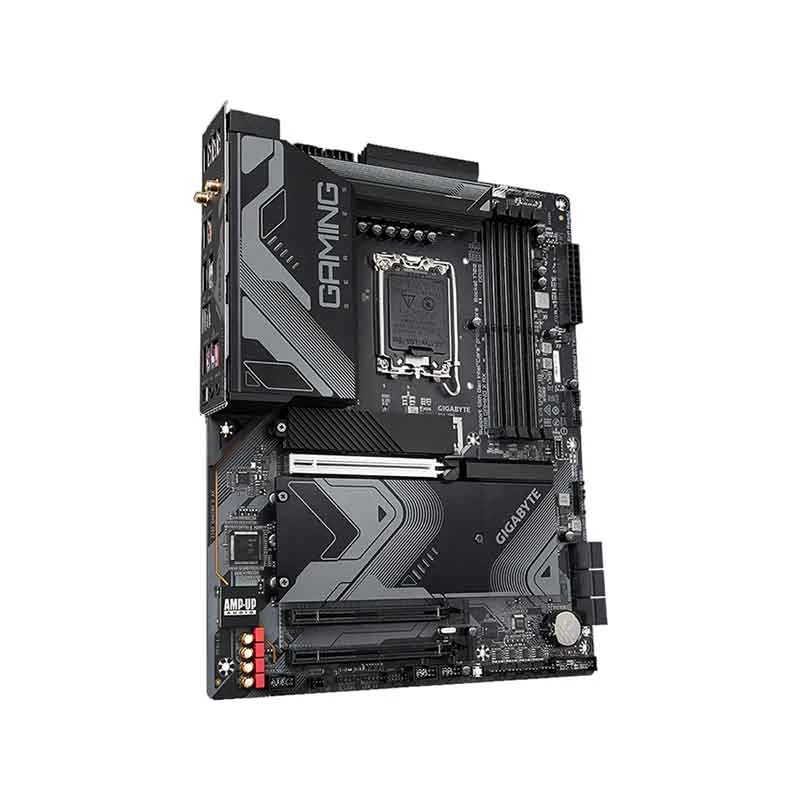

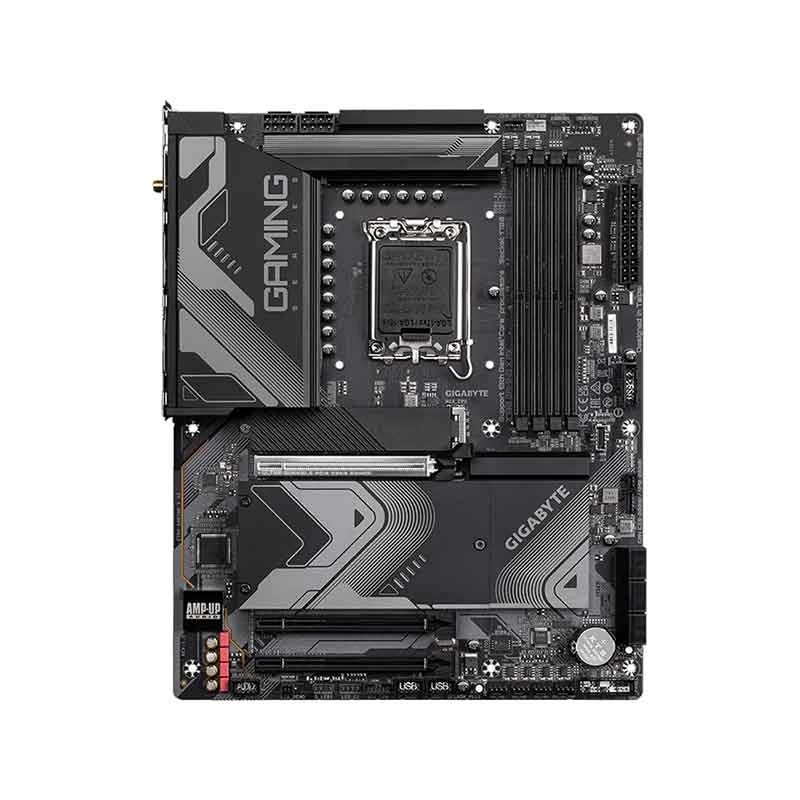

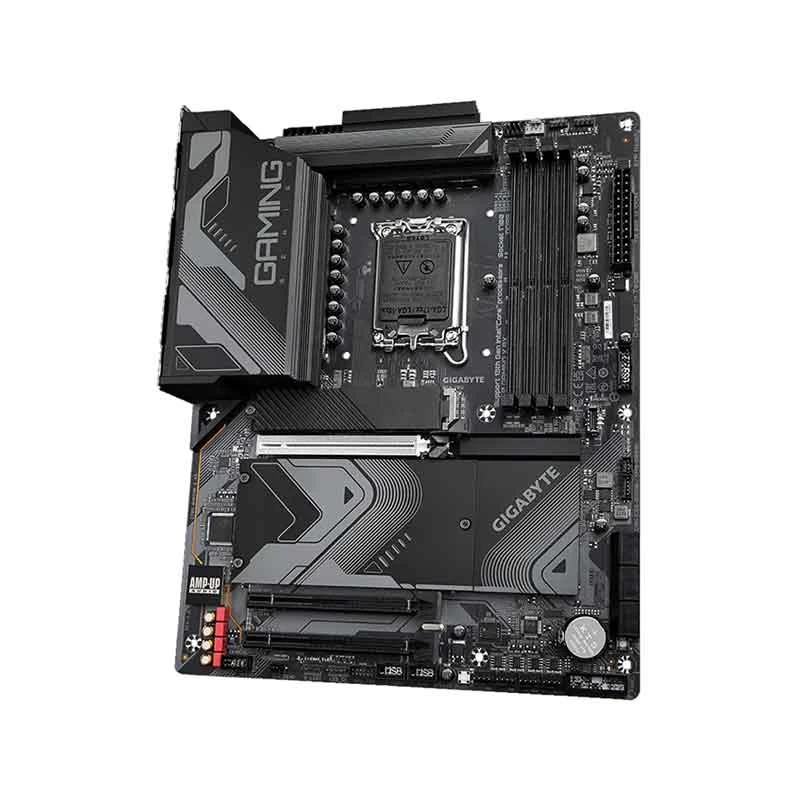

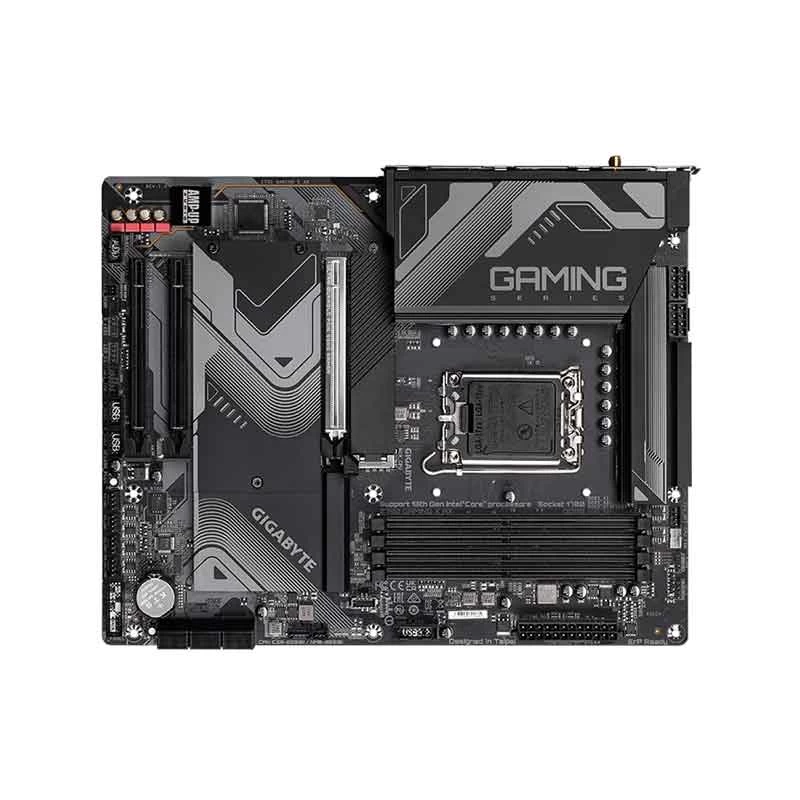

Gigabyte Z790 GAMING X AX (Wi-Fi 6E) DDR5 Motherboard (Bundle with PC)

Product Id: 02.01.018.451

Brand Gigabyte

Regular Price Tk 36,890 Monthly EMI Tk 3,074
Special Price Tk 34,000

Quick Overview

  • Chipset - Intel Z790
  • Sockets Supported - LGA1700
  • Supported CPU - 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Gigabyte

Model
Gigabyte Z790 GAMING X AX (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000Mhz non-ECC & Un-buffered Memory.

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 (3 x M.2 (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support), 1 x M.2 (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support))


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

PCI Express Slot
1 x PCI Express x16 slot, (PCIe 5.0 and running at x16 (PCIEX16)), 1 x PCI Express x16 slots, (PCIe 4.0 and running at x4 (PCIEX4_1)), 1 x PCI Express x16 slots, (PCIe 3.0 and running at x4 (PCIEX4_2))


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN

LAN Speed (Mbps)
100/1000/2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6E AX211

Bluetooth
Bluetooth 5.3


Ports
USB Port
4 x USB 2.0/1.1, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 1 x USB Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
6 x SATA

Thunderbolt
2

TPM Port
Yes

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0,1,5,10

RGB Support
RGB

RGB Sync
No

RGB Connector
2 x RGB LED strip headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 11/ 10

Compatible Products
Core i3, Core i5 ,Core i7,Core i9, Pentium Gold (12th Gen, 13th Gen & 14th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Support for GIGABYTE Control Center. Support for Q-Flash. Support for Q-Flash Plus. Support for Smart Backup.

Others

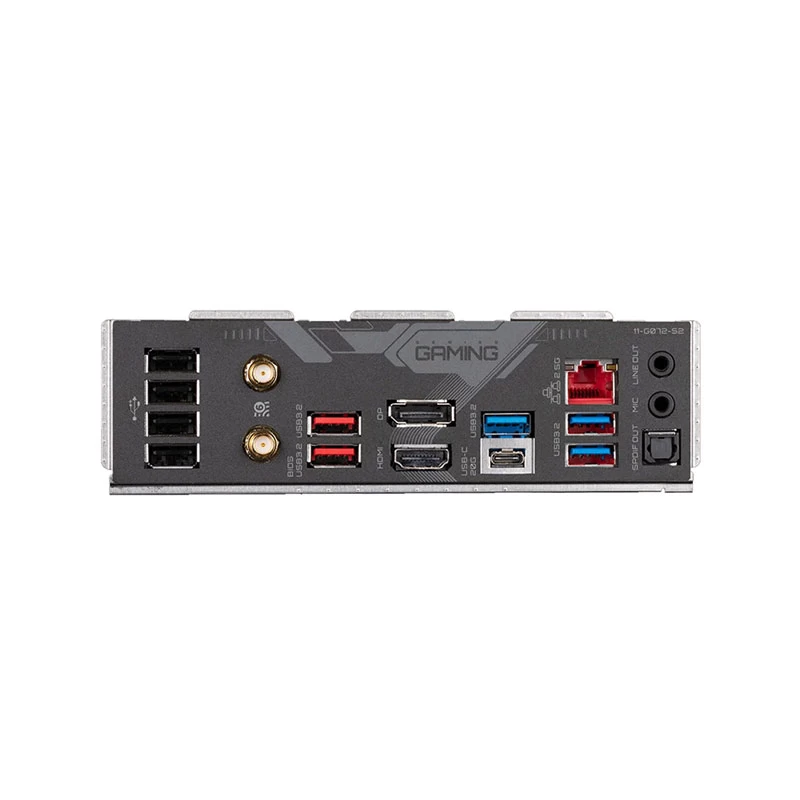

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 1 x front panel header, 1 x front panel audio header, 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper. Back Panel Connectors: 2 x SMA antenna connectors (2T2R), 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
Etay argb port ache? Mane gigabyte rgb fusion 2 support hobe?
By Belal
A:
প্রিয় গ্রাহক,জি! RGB Fusion সাপোর্ট করবে, ধন্যবাদ!
By Ryans Computers Ltd. , 28 Jan 2024
