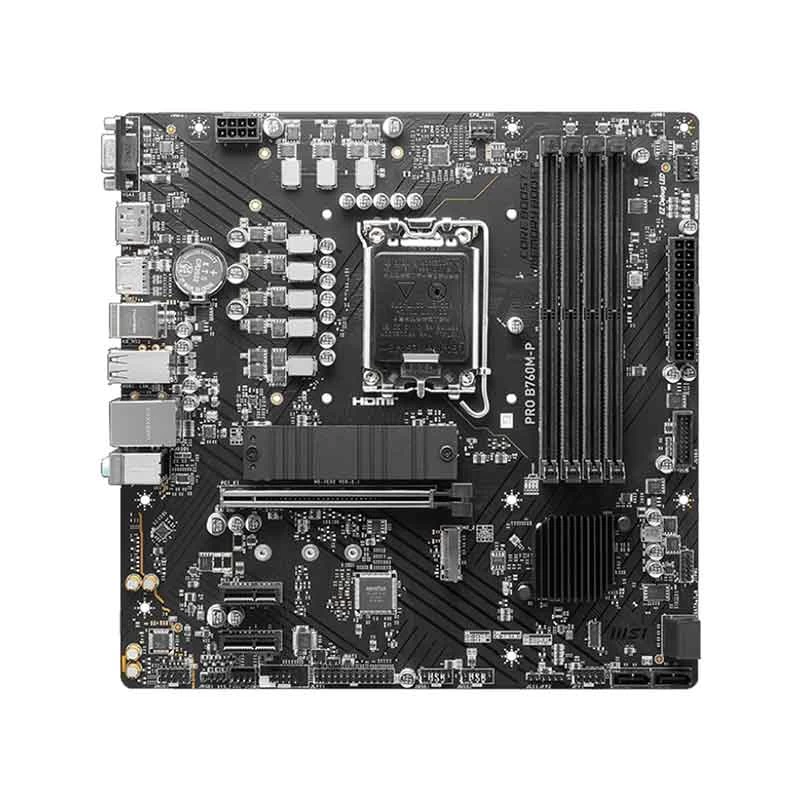

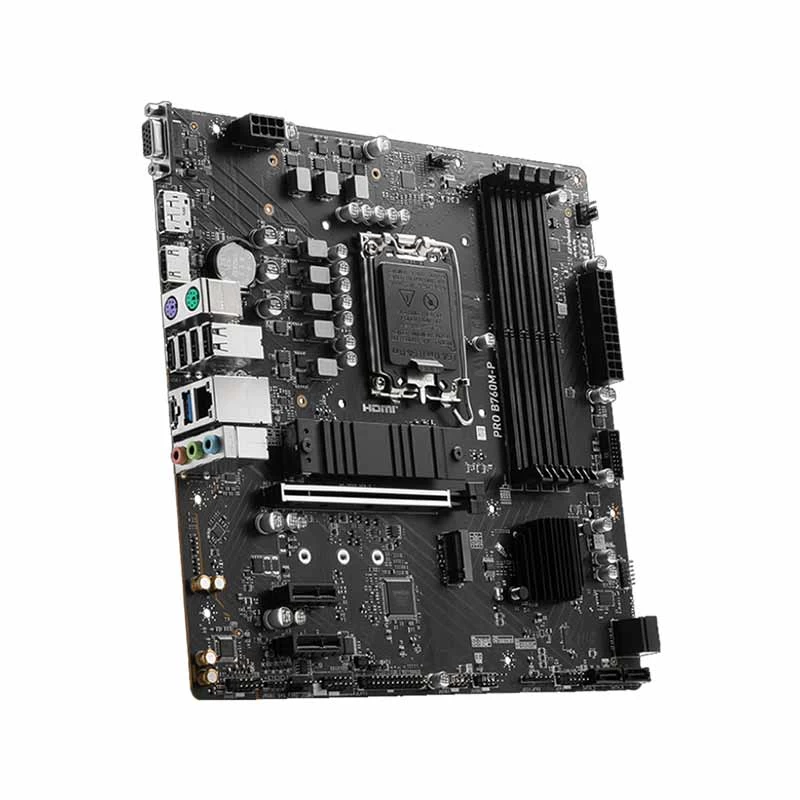

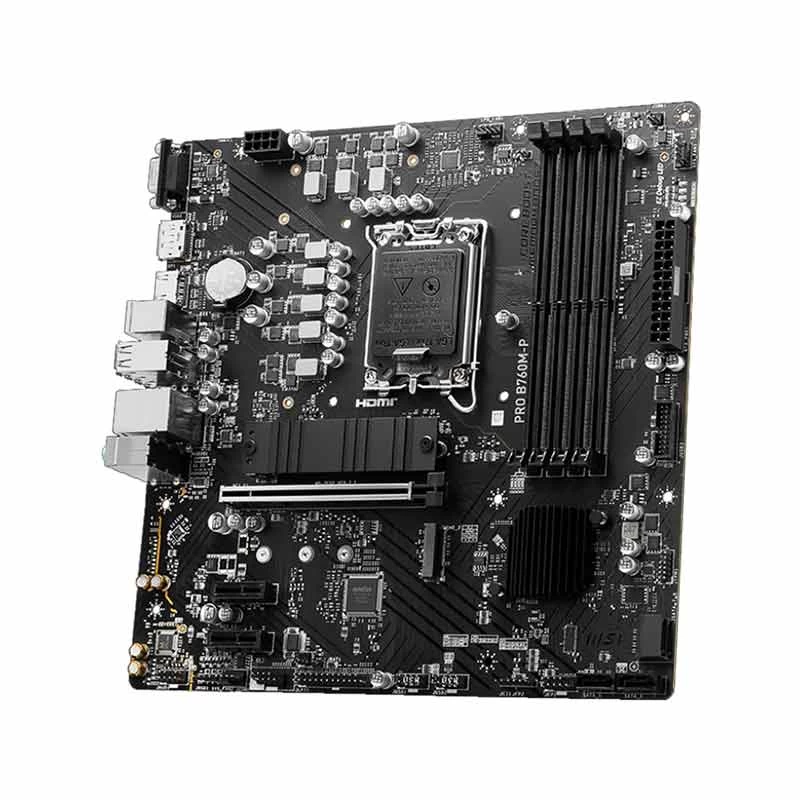

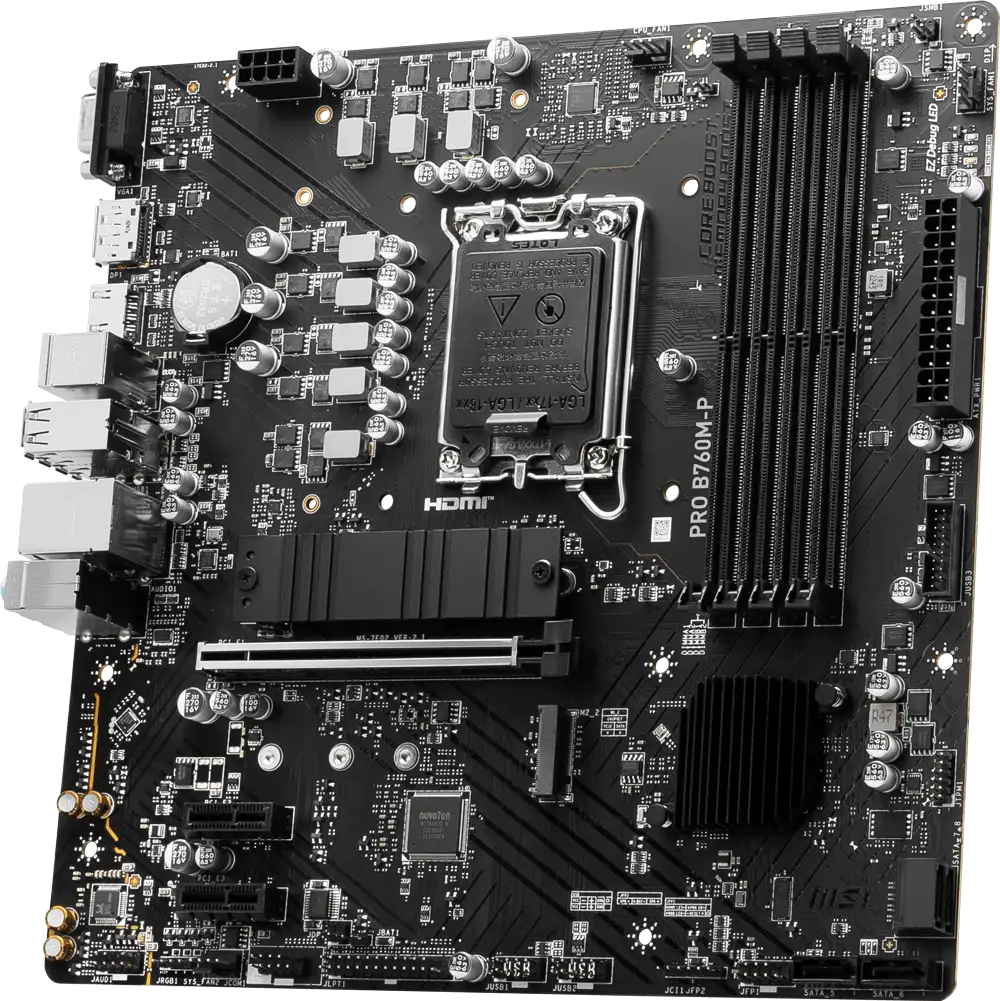

MSI PRO B760M-P DDR5 Intel Motherboard

Product Id: 02.01.033.383

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 96GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
  • Generation - 12th/13th/14th
General
Brand
MSI

Model
MSI PRO B760M-P

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)MHz non-ECC, un-buffered memory

Memory Channel
2

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR5

Memory Max.
96GB

Optane Memory Support
No


Storage
M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
1 x M.2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
1x PCI-E x16 slot, 2x PCI-E x1 slot


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8111H Gigabit LAN

LAN Speed (Mbps)
0/100/1000 Mbps

WiFi
No

WiFi Technology
No

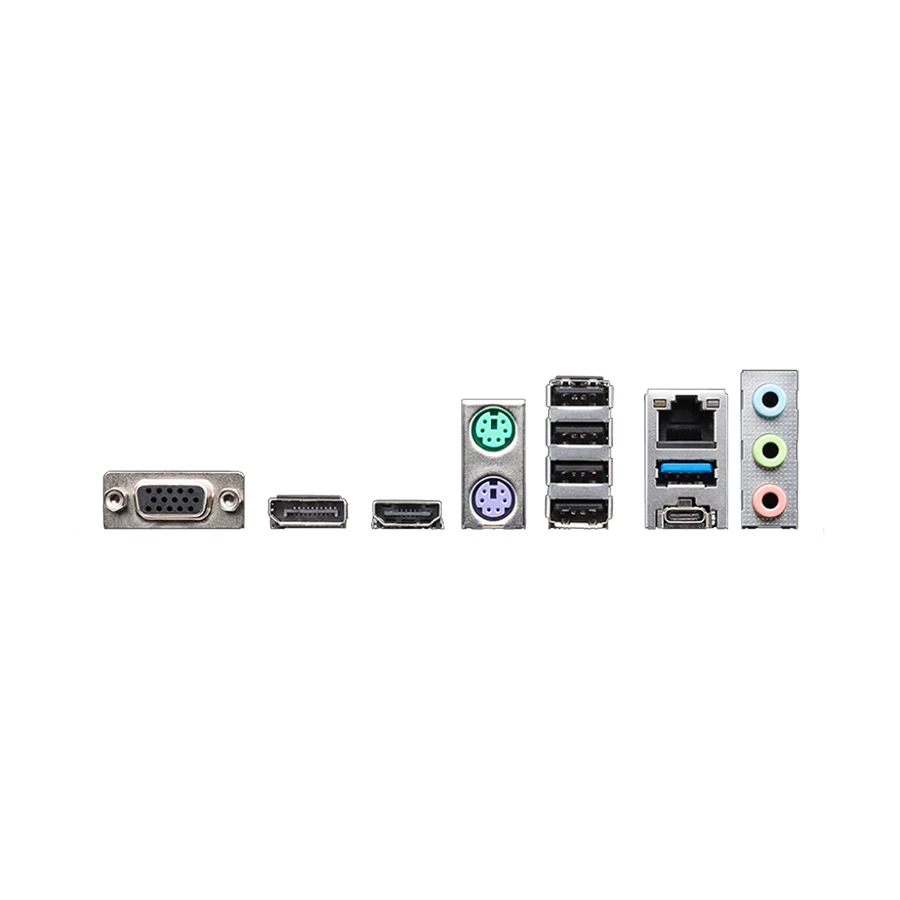

Ports
USB Port
4 x USB 2.0 Type-A , 1 x USB 3.2 Gen 1 5Gbps (Type-A), 1 x USB 3.2 Gen 2 10Gbps (Type-C)

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

SATA Port
4

Thunderbolt
No


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0 / 1/ 5/ 10

RGB Support
RGB

RGB Connector
1x RGB LED connector(JRGB)

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 11 64-bit, Windows 10 64-bit


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature

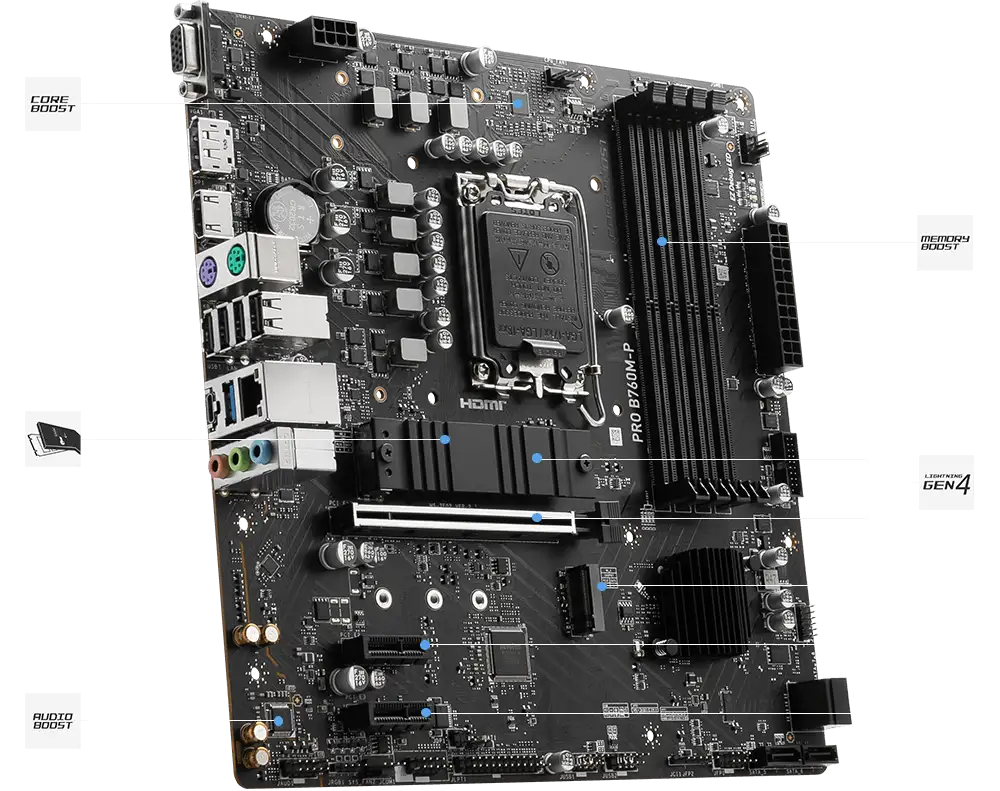

Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC), Core Boost : With premium layout and digital power design to support more cores and provide better performance, Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility, Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience, Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength,

Others
Supports Intel XMP 3.0 OC, Supports Dual-Controller Dual-Channel mode, Support HDMI 1.4, maximum resolution of 4K 30Hz, Support DP 1.4, maximum resolution of 4K 60Hz, Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices , M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices , USB - 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 1x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front), 1x USB 3.2 Gen2 Type C (Rear), Internal I/O - 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Printer Port (JLPT), 1x Com Port (JCOM), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports. LED FEATURE - 4x EZ Debug LED, PCB Dimension (W ?? L) - 243.84mmx243.84mm.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
