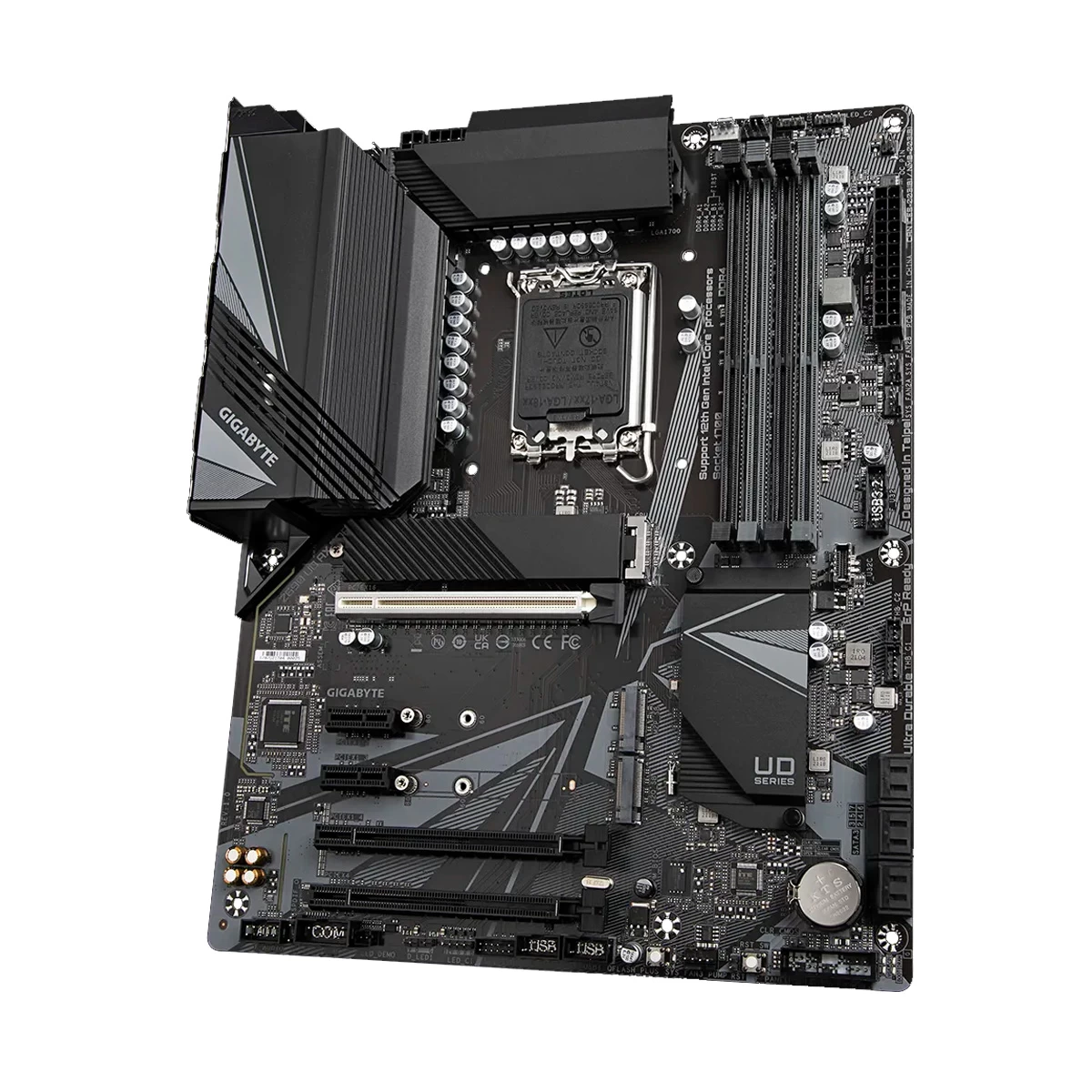

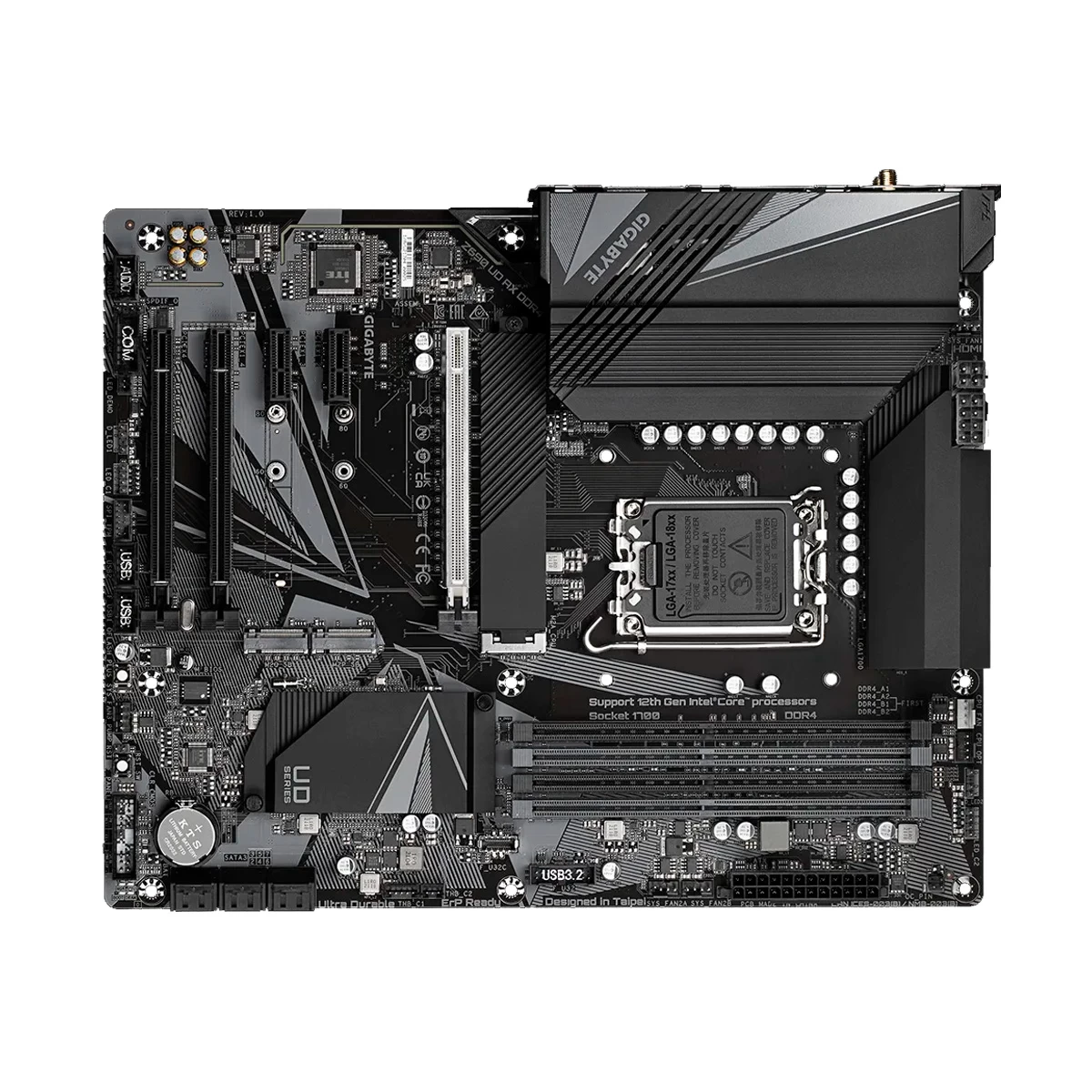

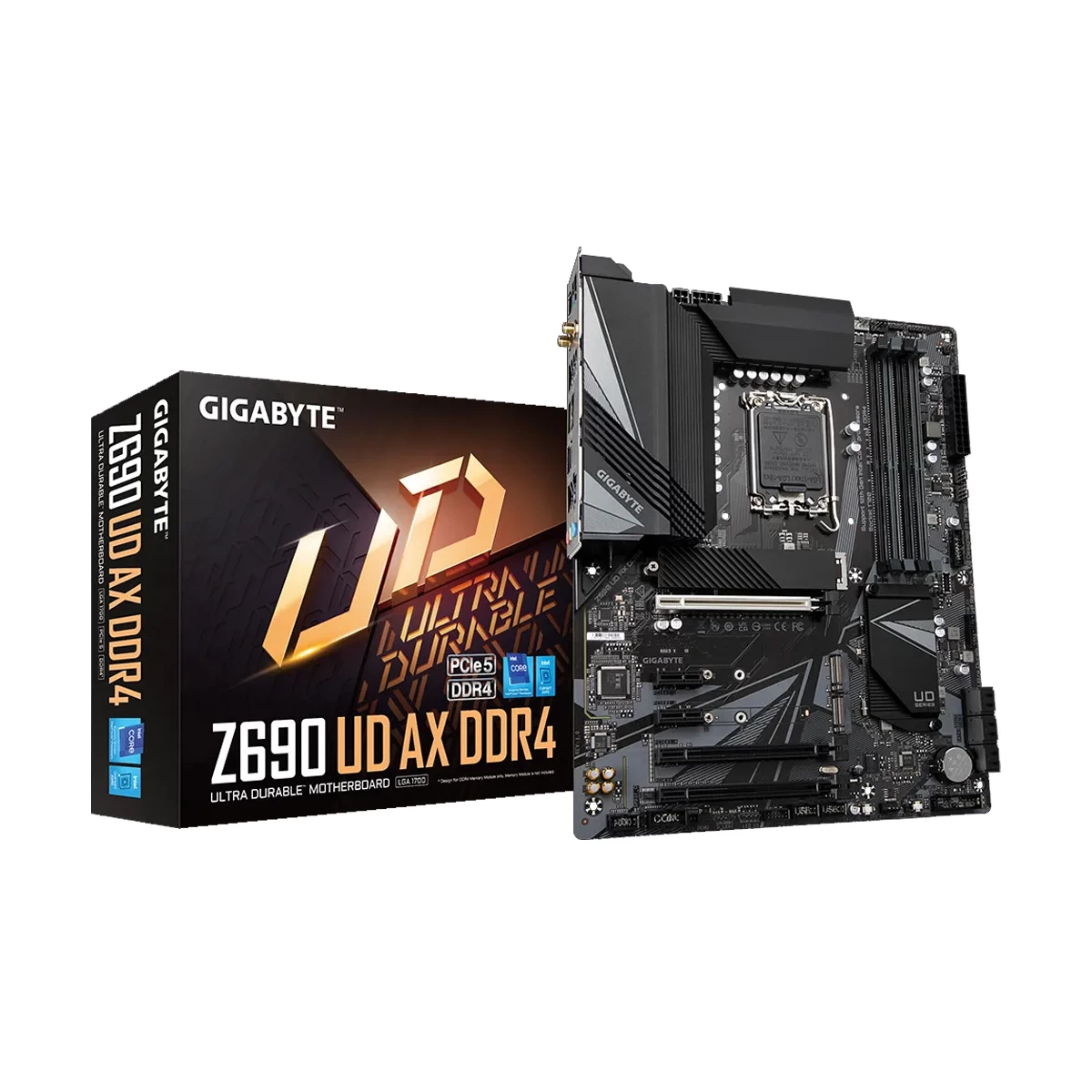

Gigabyte Z690 UD AX (Wi-Fi 6) DDR4 Intel Motherboard

Product Id: 02.01.018.377

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

Quick Overview

  • Chipset - Intel Z690
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th/14th Gen Intel Core i5, i7, i9 Processors
  • Generation - 12th/13th/14th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Gigabyte

Model
Gigabyte Z690 UD AX (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z690

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th/14th Gen Intel Core i5, i7, i9 Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR4

Memory MHz
5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 x M.2 ( 1 x M.2, type 2242/2260/2280/22110), (1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode), (1 x M.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes))


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
AMD Quad-GPU CrossFire and 2-Way AMD CrossFire

PCI Express Slot
1 x PCIe 5.0/4.0/3.0 x16 slot, 1 x PCIe 4.0/3.0 x16 slot, 1 x PCIe 3.0 x16 slots, 2 x PCIe 3.0 x1 slot


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek 2.5Gb Ethernet

LAN Speed (Mbps)
10/100/1000/2500 Mb/s

WiFi
Yes

WiFi Technology
2x2 Wi-Fi 6 AX201(802.11a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.2

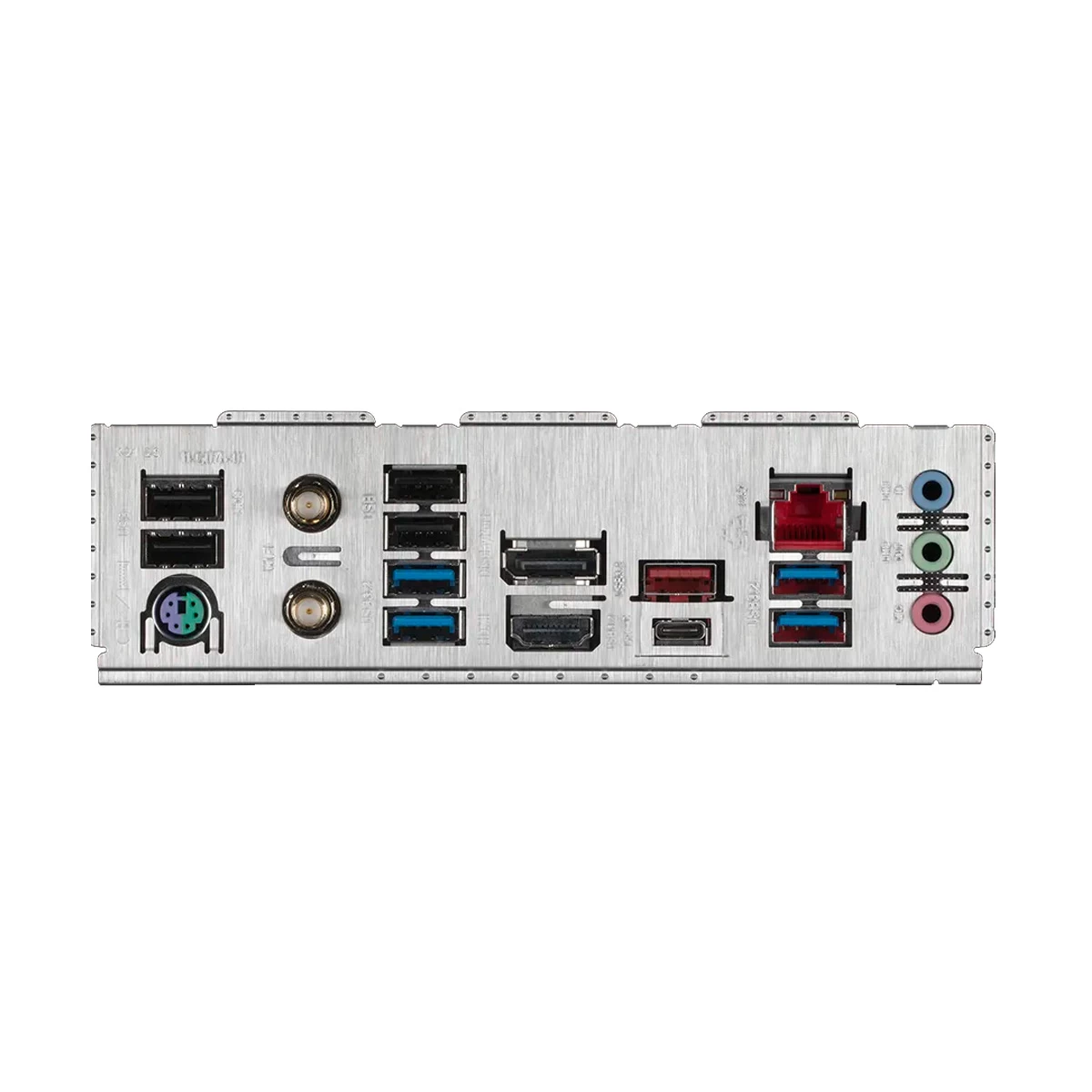

Ports
USB Port
1 x USB Type-C 3.2 Gen 2x2, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
6

Thunderbolt
2

TPM Port
Yes


Technical Info
FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync
RGB Fusion 2.0

RGB Connector
2 x RGB LED strip headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
LGA1700 Socket 12th, 13th Gen & 14th Gen Intel Processor


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, Direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor, Ultra Performance VRM Heatsinks, Intel WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna, Fast 2.5 GbE LAN with Bandwidth Management, 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard, SuperSpeed USB 3.2 Gen 2x2 TYPE-C delivers up to 20Gb/s transfer speeds, RGB FUSION 2.0 supports Addressable LED & RGB LED Strips, Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Others
2 x Thunderbolt add-in card connectors, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 1 x system fan/water cooling pump header

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
