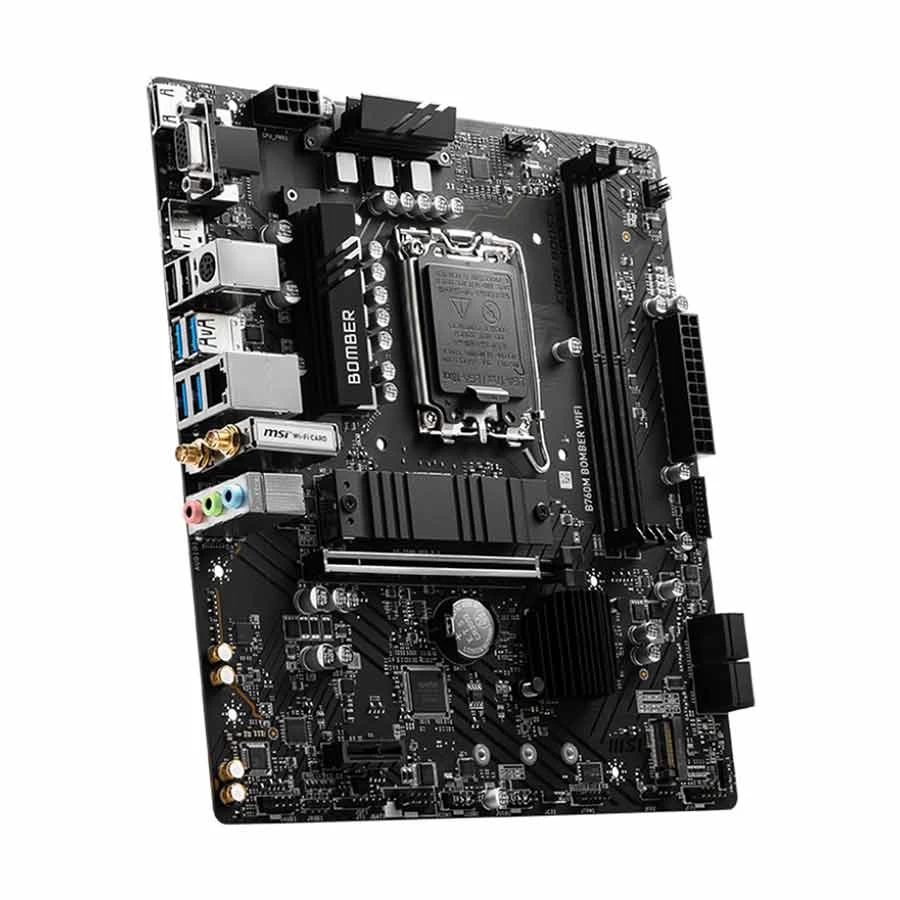

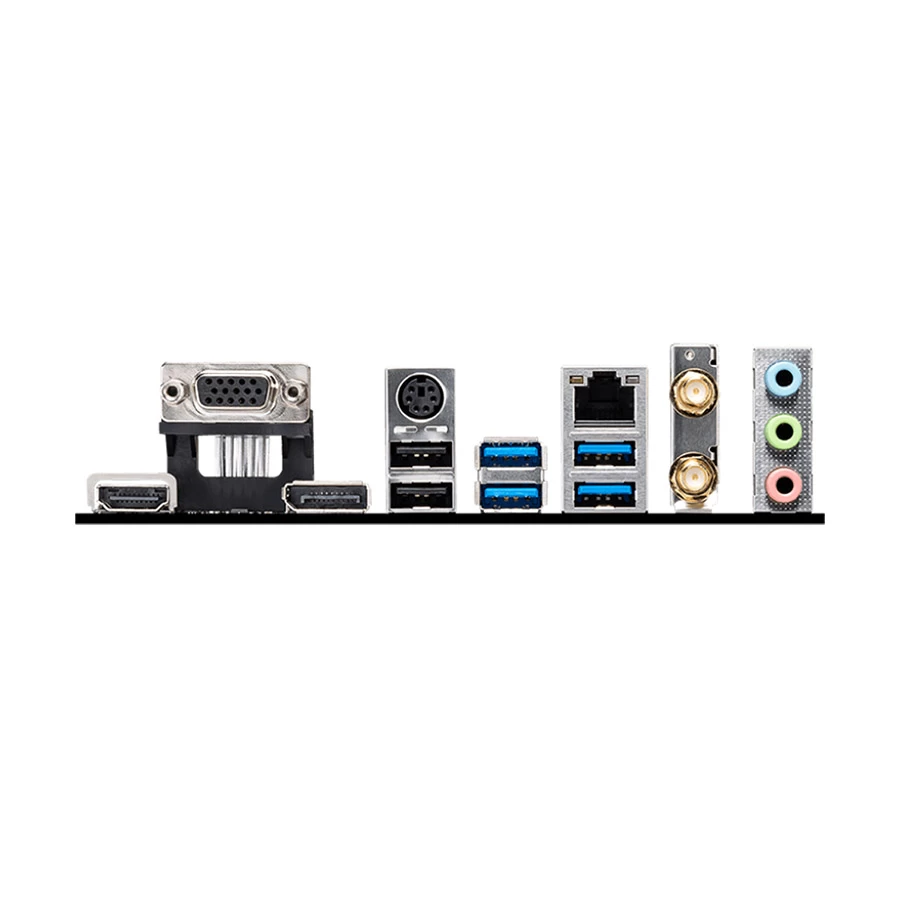

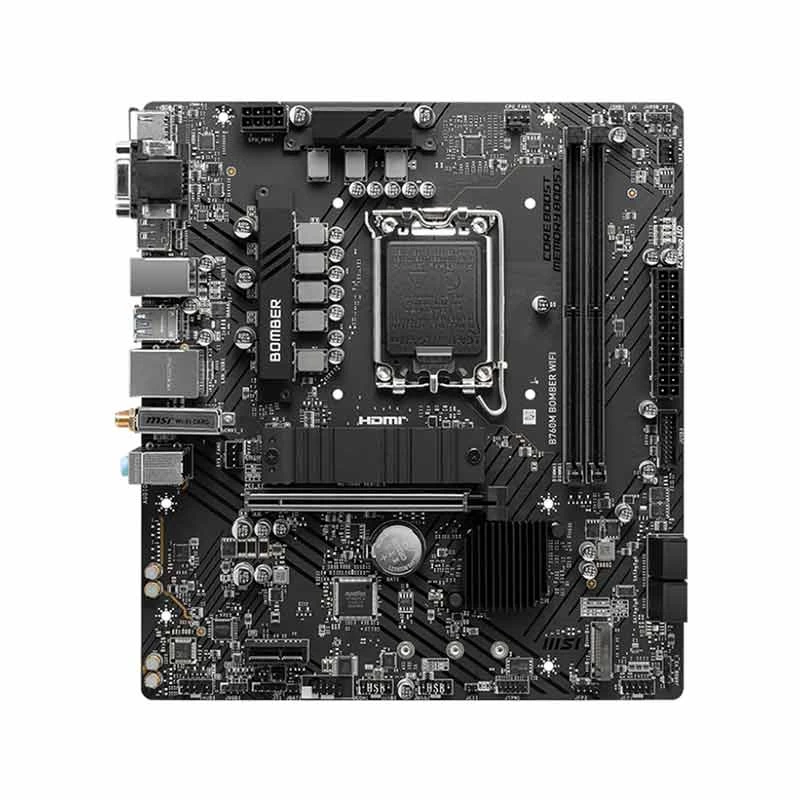

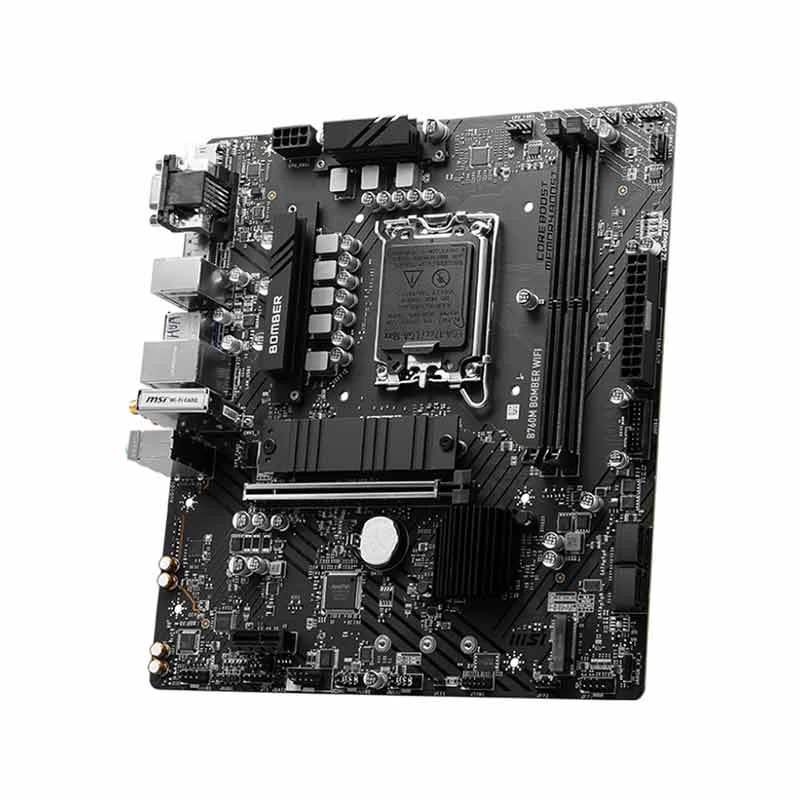

MSI B760M BOMBER (Wi-Fi 6E) DDR5 Intel Motherboard
Product Id: 02.01.033.385
Brand
MSI
Regular Price Tk 20,510
Monthly EMI Tk 1,709
Special Price Tk 18,900
Quick Overview
- Chipset - Intel B760
- Memory Max. - 96GB
- Memory Slot - 2
- Sockets Supported - LGA1700
- Supported CPU - 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Gold processors/ Intel Celeron processors
- Generation - 12th/13th/14th
General
Brand
MSI
Model
MSI B760M BOMBER (Wi-Fi 6E)
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Gold processors/ Intel Celeron processors
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz non-ECC Un-buffered
Memory Channel
Dual
Memory Slot
2
Memory Slot (Additional Info)
2x DDR5
Memory Max.
96GB
Memory Max. (Additional Info)
Maximum Memory Capacity 96GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 (M.2_1 supports 2280/2260/2242 devices, supports up to PCIe 4.0 x4 (From CPU)), (M.2_2 supports 2280/2260/2242 devices, supports up to PCIe 4.0 x4 / SATA mode (From Chipset))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1x PCI-E x16 slot (Quantity), 1x PCI-E x1 slot (Quantity), PCI_E1 Gen PCIe 4.0 supports up to (From CPU), PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Audio & Video
Audio Chipset
Realtek ALC897 Codec High Definition Audio
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek RTL8125B 2.5Gbps LAN
LAN Speed (Mbps)
10/100/1000/2500 Mb/s
WiFi
Yes
WiFi Technology
Intel Wi-Fi 6E Supports 802.11 a/ b/ g/ n/ ac/ ax,Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Bluetooth
Bluetooth 5.3
Ports
USB Port
4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
DirectX Support
No
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
2 x Addressable V2 RGB LED connector, 1 x RGB LED connector
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Compatibility
Supported Operating System
Windows 10/ 11
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
Core Boost : With premium layout and digital power design to support more cores and provide better performance, Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility, AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience, Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Others
Memory - Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz, 1DPC 2R Max speed up to 5600+ MHz, INTERNAL I/O - 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 4x USB 2.0, 2x USB 3.2 Gen1 Type A, LED FEATURE - 4x EZ Debug LED, BACK PANEL PORTS - 1x 2.5G LAN, 2x Wi-Fi / Bluetooth, 3x Audio Connectors
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of MSI B760M BOMBER (Wi-Fi 6E) Motherboard In Bangladesh
B760M BOMBER WIFI
- 12th / 13th /14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Gold processors/ Intel Celeron processors
- Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
What is the price of MSI B760M BOMBER (Wi-Fi 6E) Motherboard In Bangladesh?
The price of MSI B760M BOMBER (Wi-Fi 6E) Motherboard starts from 18,900 . The price may vary due to your customization and product availability. You can buy MSI B760M BOMBER (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
