N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

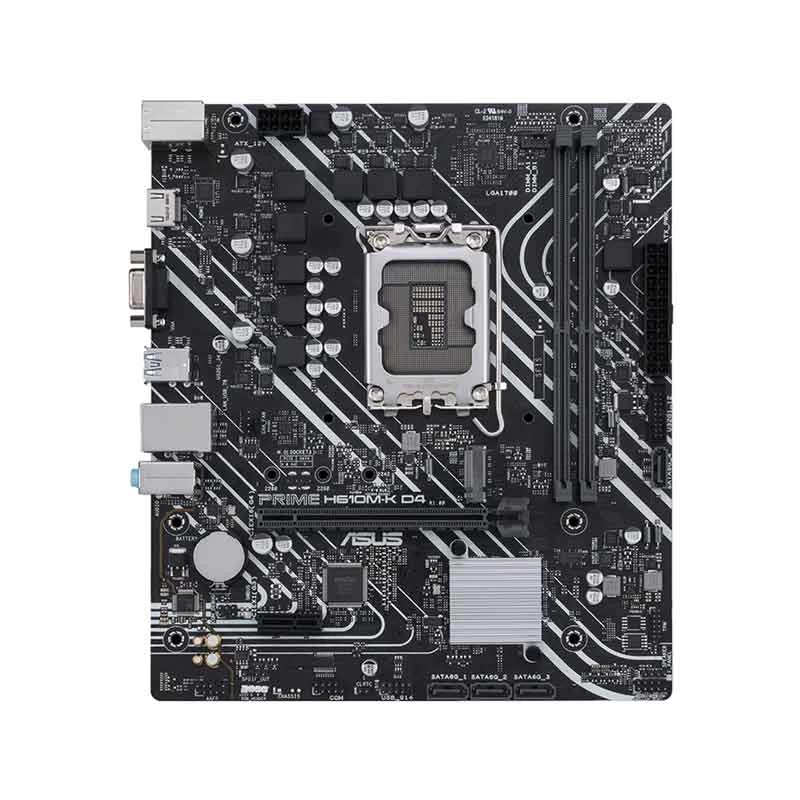

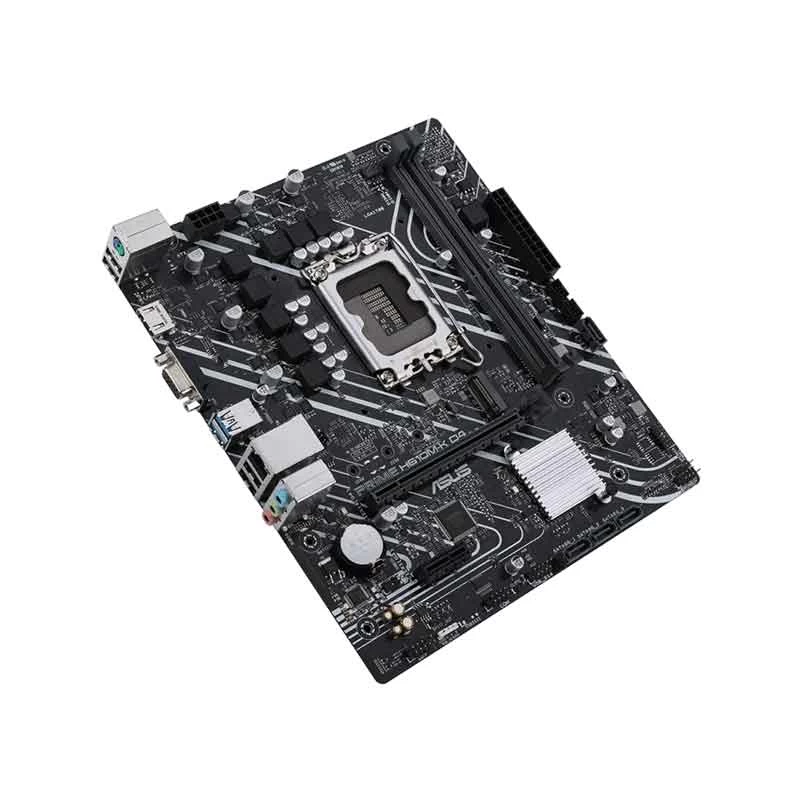

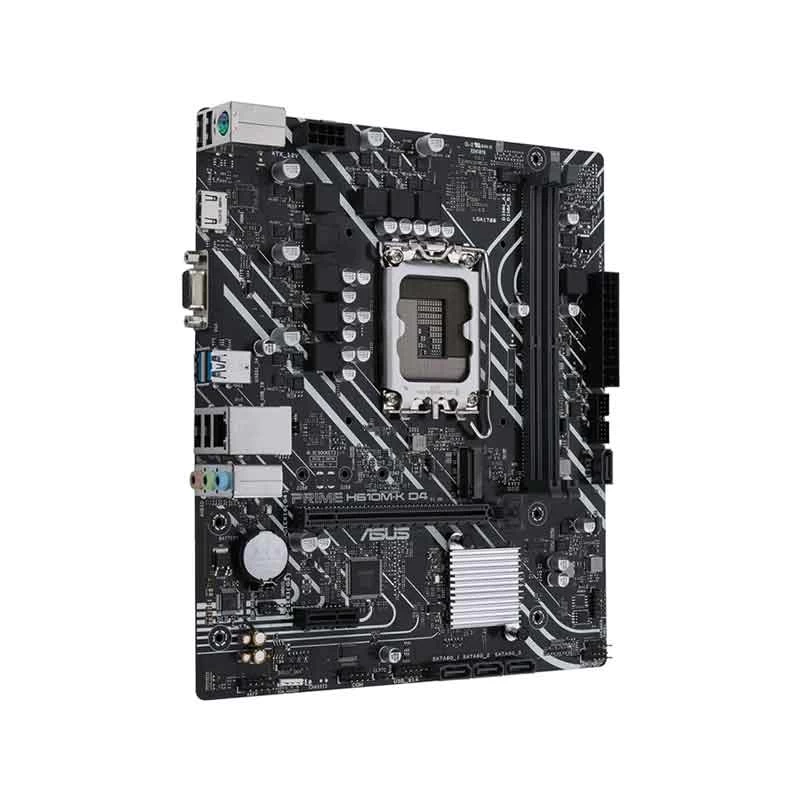

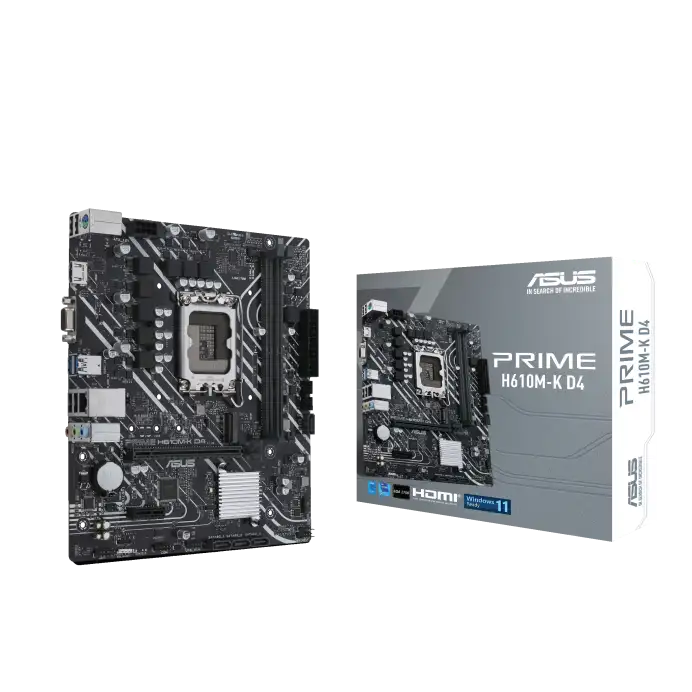

Asus PRIME H610M-K D4 DDR4 12th/13th/14th Gen Intel LGA1700 Socket Motherboard

Product Id: 02.01.006.411

Brand Asus

Regular Price Tk 13,020 Monthly EMI Tk 1,085
Special Price Tk 12,200

Quick Overview

  • Chipset - Intel H610
  • Sockets Supported - LGA1700
  • Supported CPU - Intel Core, Pentium, Gold and Celeron Processors
  • Generation - 12th/13th/14th
  • Memory Slot - 2
  • Memory Max. - 64GB
General
Brand
Asus

Model
Asus PRIME H610M-K D4

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H610

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Intel Core, Pentium, Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR4

Memory MHz
3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Memory Channel
Dual

Memory Slot
2

Memory Slot (Additional Info)
2 x DIMM

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details

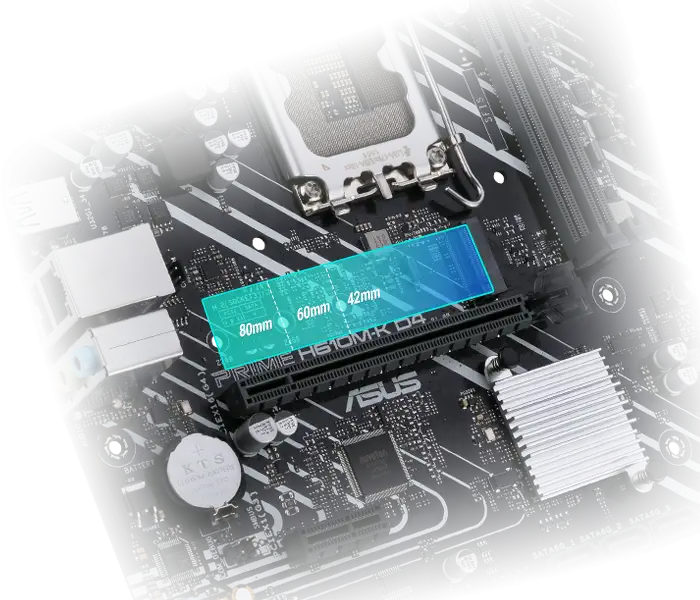

1 x M.2 (Type 2242/2260/2280, supports PCIe 3.0 x4 & SATA modes)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 4.0 x16 slot (Intel 12th Gen Processors), 1 x PCIe 3.0 x1 slot (Intel H610 Chipset)


Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 1Gb Ethernet

LAN Speed (Mbps)
10/ 100/ 1000Mbps

WiFi
No

WiFi Technology
Not Applicable

Bluetooth
No


Ports
USB Port
2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
Yes

COM Port
Yes


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
No

RGB Support
RGB

RGB Sync
ASUS Lighting Control

RGB Connector
1 x RGB header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
128 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 11/10

Compatible Products
LGA1700 Socket 12th, 13th & 14th Gen Intel Processor


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header

Others

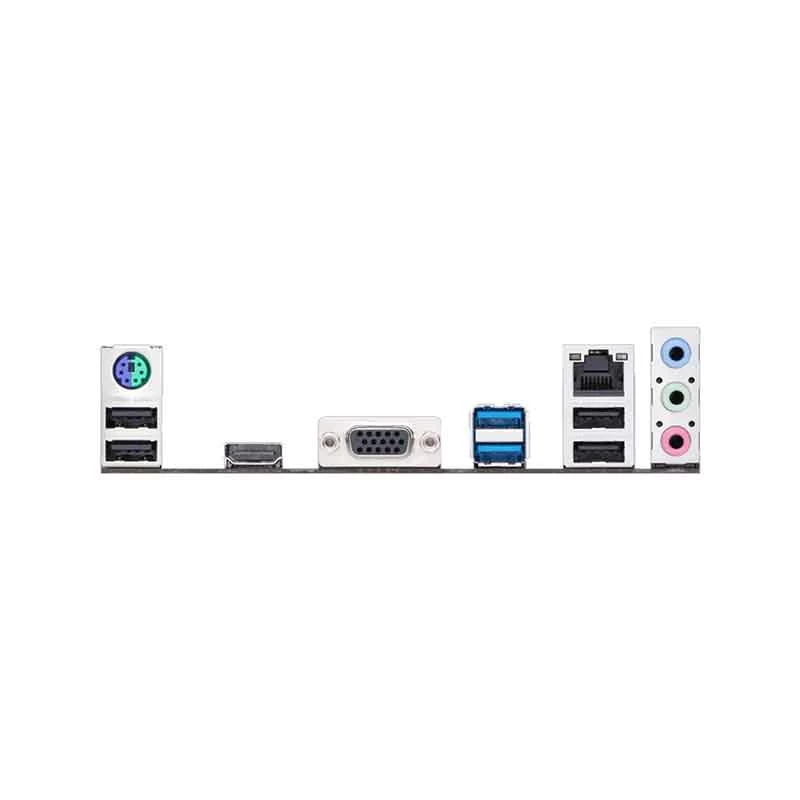

Back Panel I/O Ports: 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port. Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x 10-1 pin System Panel header

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
can i use PCI Express 3.0 Graphics Card in this motherboard?
By MD Ramjan Ali
A:
Dear Sir, It will support PCIe express 3.0 graphics card, for knowing the exact information you can share your graphics card's full model, Thanks for your query!
By Ryans Computers Ltd. , 02 Mar 2024
Q:
Is this motherboard available in mymensingh branch now?
By Muhammad Shafiul
A:
Dear Sir, this one is not available in mymensingh branch right now, Thanks for your query!
By Ryans Computers Ltd. , 05 Nov 2023
Q:
can i use GPU with these motherboard?
By md zihadul islam rumman
A:
Dear Sir, Yes! you can use GPU with this motherboard, Thanks for your query!
By Ryans Computers Ltd. , 11 Oct 2023
