Gigabyte B760M D2H DDR5 Intel Motherboard
Product Id: 02.01.018.480
Brand
Gigabyte
Regular Price Tk 16,930
Monthly EMI Tk 1,411
Special Price Tk 15,700
Quick Overview
- Chipset - Intel B760
- Memory Max. - 96GB
- Memory Slot - 2
- Sockets Supported - LGA1700
- Supported CPU - 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Gold processors/ Intel Celeron processors.
- Generation - 12th/13th/14th
General
Brand
Gigabyte
Model
Gigabyte B760M D2H
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Gold processors/ Intel Celeron processors.
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
8000(O.C.)/ 7800(O.C.)/ 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz ECC & non-ECC Un-buffered
Memory Channel
Dual
Memory Slot
2
Memory Slot (Additional Info)
2 x DDR5 DIMM
Memory Max.
96GB
Memory Max. (Additional Info)
Up to 96 GB (48 GB single DIMM capacity)
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 M key type 2280 support PCIe 4.0 x4/x2 SSD), (1 x M.2 M key type 2280 support PCIe 4.0 x4/x2 SSD)
Graphics
Graphics
Integrated
Graphics Chipset
Intel HD Graphics support
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Audio & Video
Audio Chipset
Realtek Audio CODEC High Definition Audio
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip
LAN Speed (Mbps)
10/100/1000/2500 Mb/s
WiFi
No
Bluetooth
No
Ports
USB Port
4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
4
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
DirectX Support
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 10/ 11
Compatible Products
12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Gold processors/ Intel Celeron processors.
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Q-Flash Plus
Others
Internal I/O Connectors - 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x addressable LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.2 Gen 1 header, 3 x USB 2.0/1.1 headers, 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors - 1 x PS/2 keyboard/mouse port, 1 x RJ-45 port, 3 x audio jacks, I/O Controller - iTE I/O Controller Chip, H/W Monitoring - Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Gigabyte B760M D2H Motherboard In Bangladesh

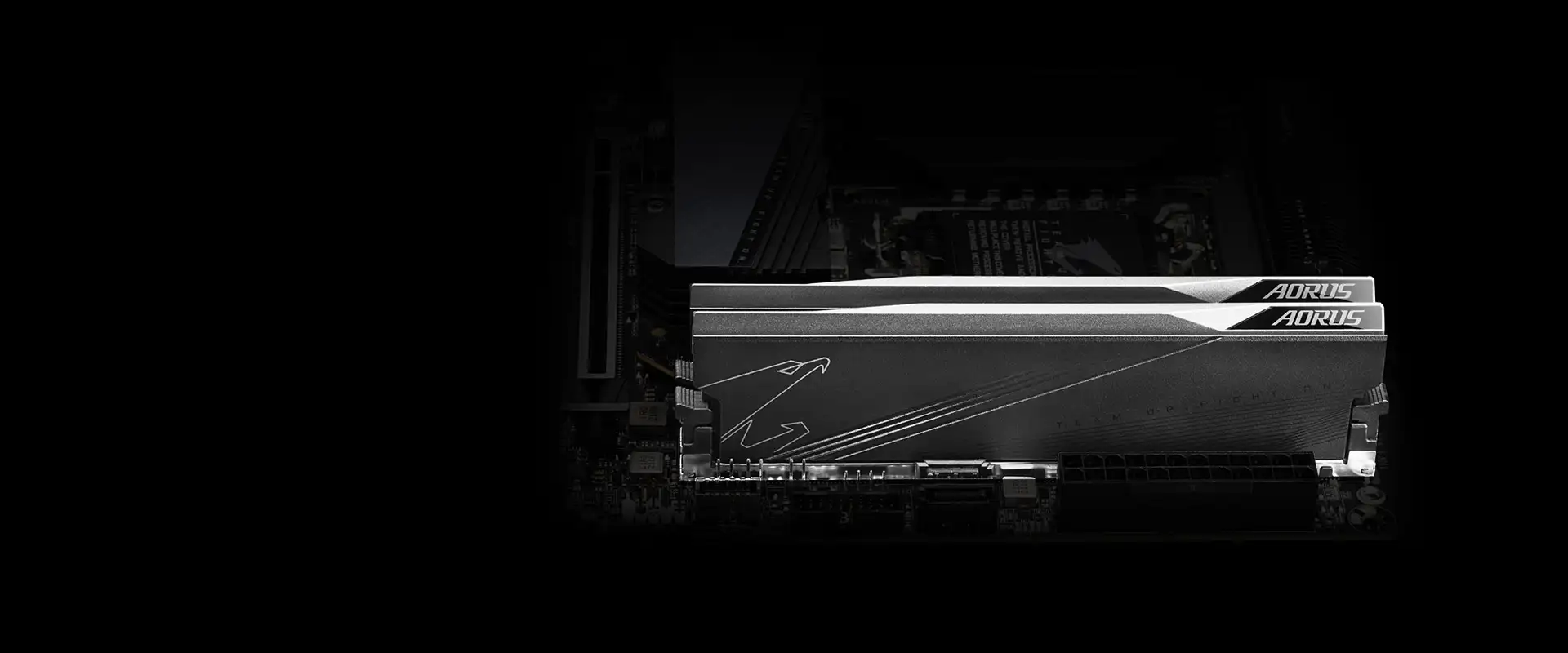

DDR5 Overclocking Up to 8000 and Beyond GIGABYTE is offering a tested and proven platform that has memory overclocking capability up to 8000 and beyond.
For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard

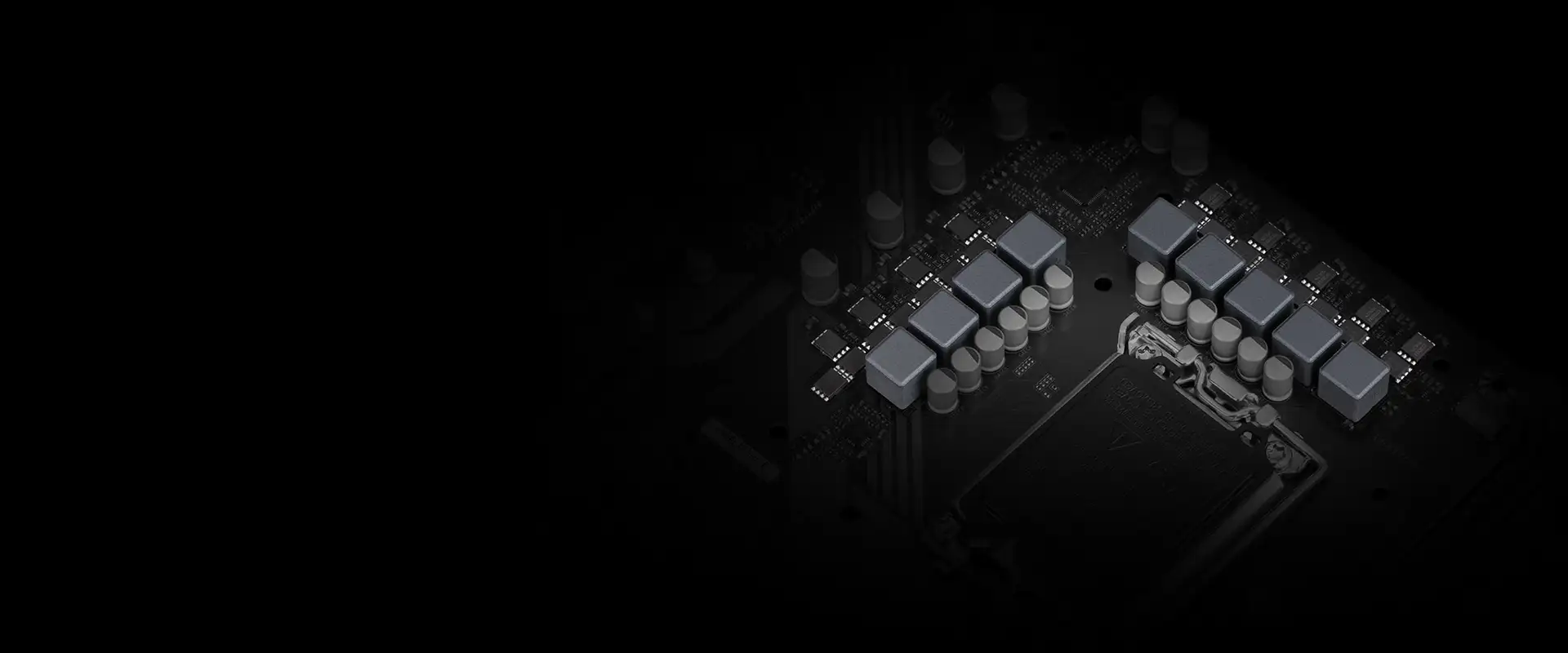

6+2+1 Phases Hybrid Digital VRM Design
- 6+2+1 Phases Low RDS(on) MOSFETs
- Premium Choke and Capacitors to improve transient response and minimize oscillation
What is the price of Gigabyte B760M D2H Motherboard In Bangladesh?
The price of Gigabyte B760M D2H Motherboard starts from 15,700 . The price may vary due to your customization and product availability. You can buy Gigabyte B760M D2H Motherboard from our website or visit our showrooms nearby.
