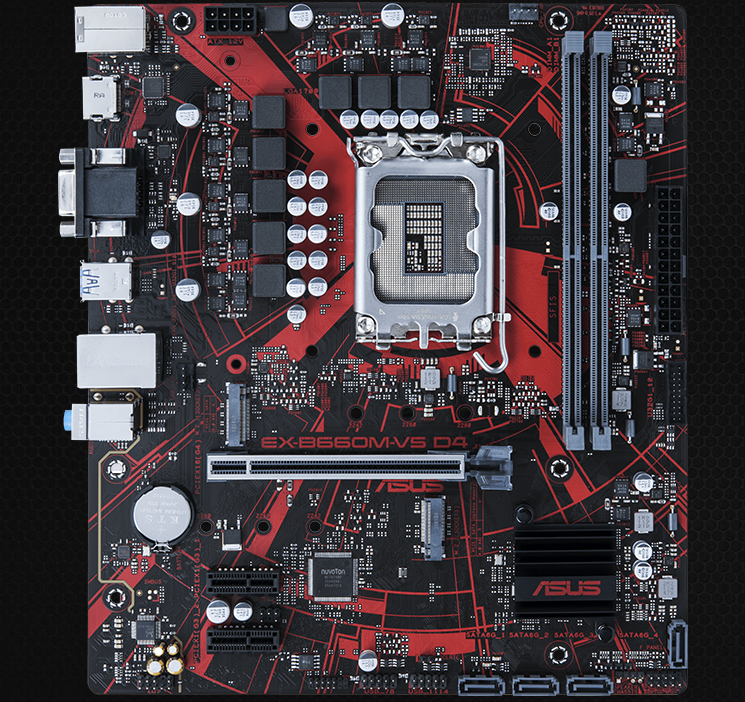

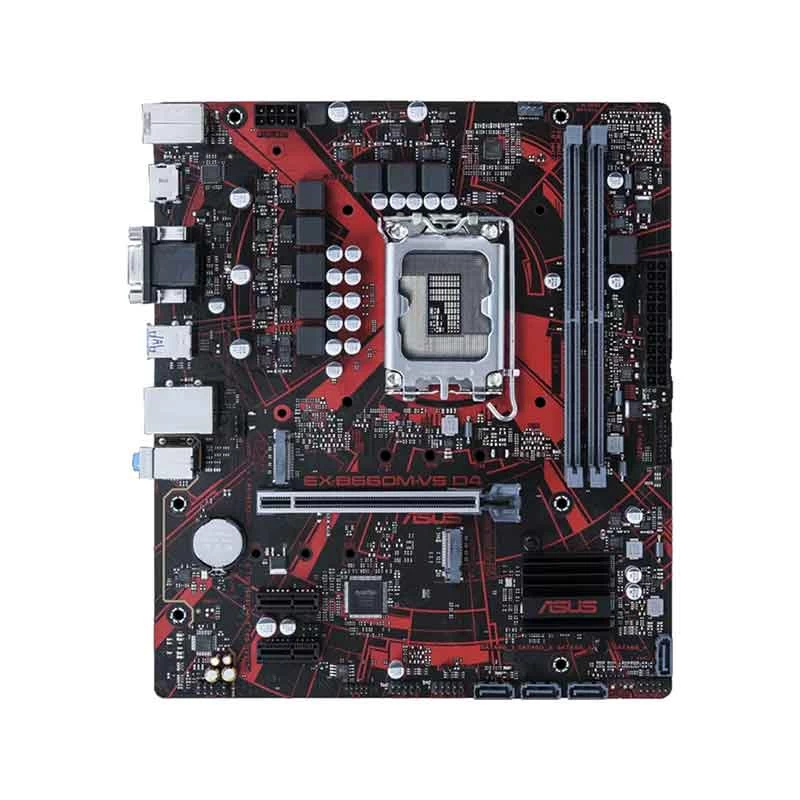

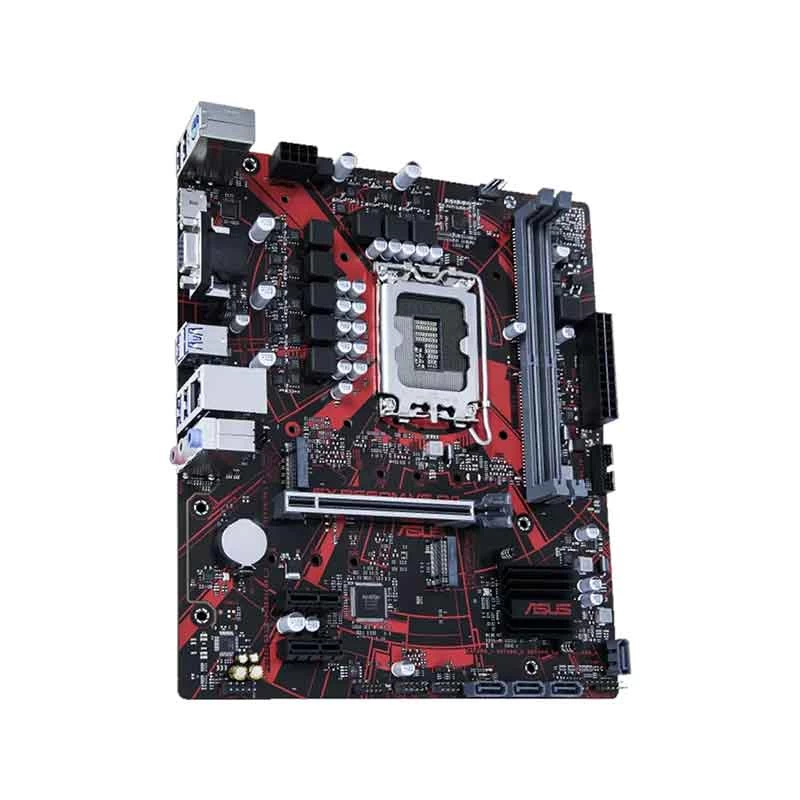

Asus EX-B660M-V5 D4 DDR4 12th/13th/14th Gen Intel LGA1700 Socket Motherboard
Product Id: 02.01.006.387
Brand
Asus
Quick Overview
- Chipset - Intel B660
- Sockets Supported - LGA1700
- Supported CPU - Intel Core, Pentium Gold and Celeron Processors
- Generation - 12th/13th/14th
- Memory Slot - 2
- Memory Max. - 64GB
- Back-Connect Design - No
Brand
Asus
Model
Asus EX-B660M-V5 D4
Chipset
Intel B660
Sockets Supported
LGA1700
Built-in Processor
No
Generation
12th/13th/14th
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
2
Memory Max.
64GB
Optane Memory Support
Yes
Graphics
Integrated
Graphics Chipset
Integrated with Processor
M.2/SSD Expansion Slot
2
WiFi
No
Bluetooth
No
Form Factor
Micro-ATX
Supported Operating System
Windows 11 and 10
Body Color
Black & Red
Warranty Details
3 Years Replacement Warranty
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus EX-B660M-V5 D4 Motherboard In Bangladesh

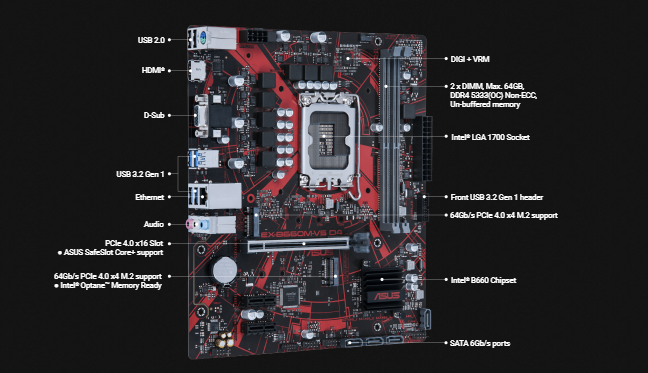

Intel® B660 (LGA 1700) mATX motherboard with PCIe® 4.0, 8 power stages, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1, DDR4 5333 (OC), luminous anti-moisture coating and Lightning Boot
- Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
- Non-stop durability: Unbeatable features including 8-pin ProCool connector, luminous anti-moisture coating, USBGuard, LANGuard, SafeSlot Core+, Stainless-steel back I/O and 5X Protection III
- Non-stop gaming: DDR4 5333 (OC), two M.2 slots, PCIe® 4.0, ASUS Beyond VR ready and Epic audio
- Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
BUILT FOR NON STOP ACTION
ASUS Expedition: Ready for non-stop battle
ASUS Expedition 600 series motherboards are made for non-stop action, featuring Lightning Boot for faster BIOS boot-up. These Expedition motherboards are engineered for long-lasting durability to protect against moisture, corrosion and overvoltage damage. They have been subjected to stringent 144-hour diskless-system tests and offer extensive compatibility with top games and over 100 gaming peripherals. Expedition motherboards include Epic gaming audio to complete the gaming experience and provide the best stability, reliability and performance.
NON STOP DURABILITY
Exceptional stability and protection
ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and features to ensure non-stop durability, including a luminous anti-moisture coating, SafeSlot Core+, LANGuard, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability.
Luminous Anti-moisture Coating
Protects against moisture and corrosion
An innovative moisture-resistant coating provides comprehensive protection to prolong the life of your Expedition motherboard. It combats the negative effects of high humidity often found in crowded environments — such as iCafé , data centers and libraries — and minimizes internal corrosion by preventing the adhesion and migration of moisture. The coating even has a luminous effect when viewed under ultraviolet light, letting you clearly see where it is applied.
USBGuard
120% higher overvoltage protection
Exclusive USBGuard technology detects voltage changes in real time, and has 120%-higher overvoltage tolerances than standard to ensure stable and reliable input voltages — minimizing the risk of damage, and protecting your equipment.

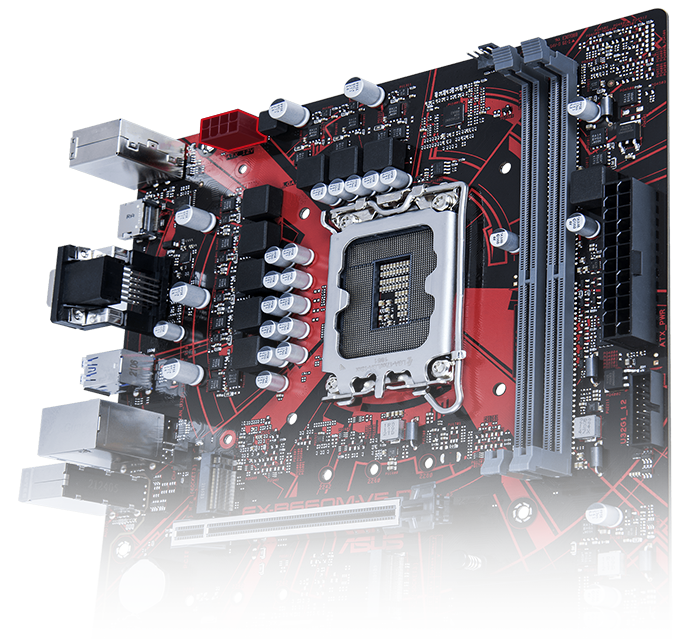

8-pin ProCool Connector
Proprietary connector augments the motherboard's link to the PSU with 8-pin connector that passes 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
.

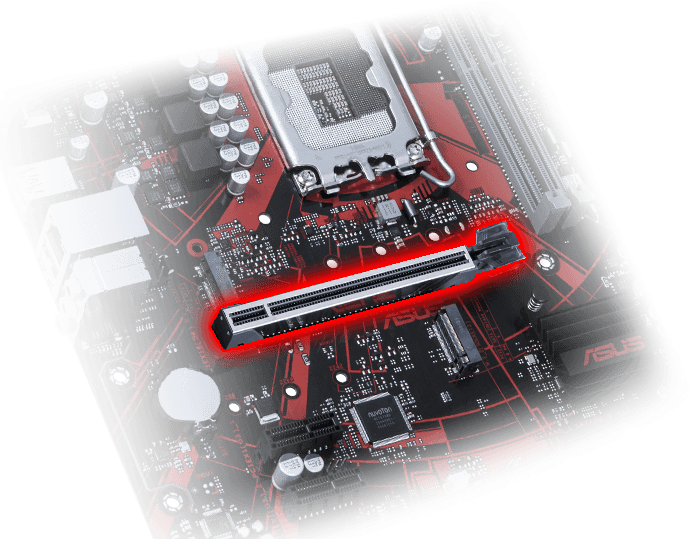

SAFESLOT CORE+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

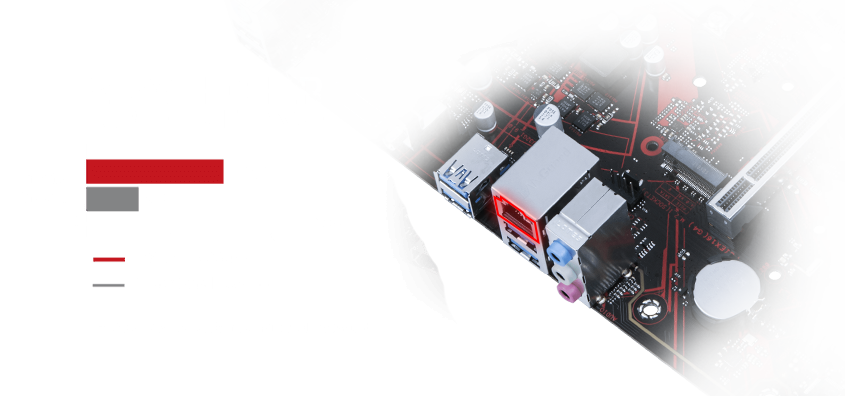

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Acclaimed UEFI BIOS
ASUS Expedition 600 series motherboards include an improved slick mouse-controlled graphical BIOS and the new Lightning Boot feature that enables cloud PCs and diskless systems to boot up BIOS faster. The iCafe and Advanced modes help PC novices and seasoned overclockers get started quickly and easily.
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
NON STOP GAMING
Improved DDR4 Performance
Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. Improved DDR4 Performance technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
Benefits of Improved DDR4 Performance:
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin

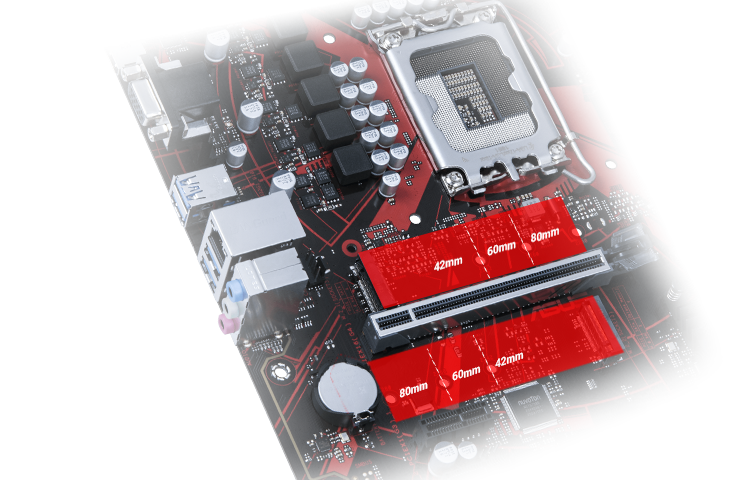

Dual M.2 slots (up to 64 Gbps)
EX-B660M-V5 D4 offers a total of two M.2 slots to support data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe® 4.0 Slot
ASUS Expedition motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
ASUS Beyond VR Ready
Perfect for iCafe Owners Wanting to Expand
Beat the competition by offering a VR experience in your iCafe with ASUS Beyond VR Ready. ASUS Expedition motherboards, plus the right mix of class-leading ASUS components, are the perfect solution for delivering the best VR experiences to your customers. ASUS Expedition motherboards passed the 3DMark VR test and further ASUS VR tests without any faults, so you can feel confident that you're offering the best performance and reliability.Expand your businesses appeal, and take your iCafe into the age of VR computing — with ASUS Beyond VR Ready!

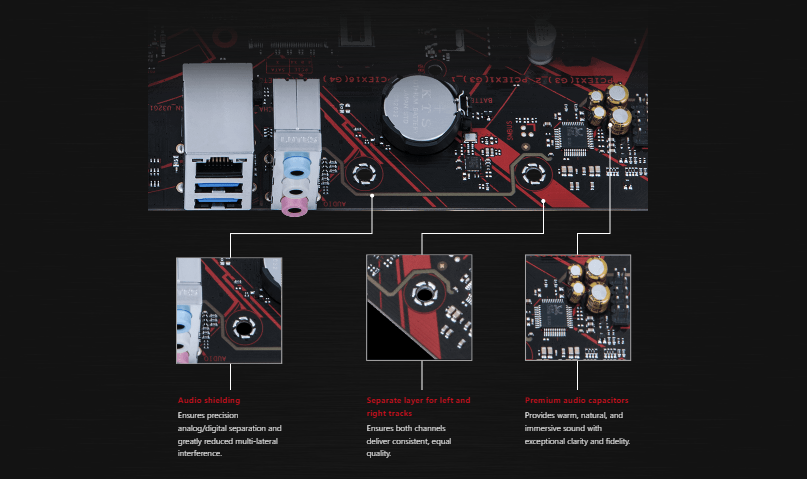

Epic gaming audio
Discover a whole new dimension of superior audio and get ready to rule!
What is the price of Asus EX-B660M-V5 D4 Motherboard In Bangladesh?
The price of Asus EX-B660M-V5 D4 Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus EX-B660M-V5 D4 Motherboard from our website or visit our showrooms nearby.
QUESTION & ANSWER
Customer Questions
Q:
Is this processor available now mymensingh branch ?
By Muhammad Shafiul
A:
Dear Sir, this is not processor, it is motherboard and this motherboard is available in mymensingh branch right now, Thanks for your query!
By Ryans Computers Ltd.
, 13 Sep 2023
Q:
Can I connect Bluetooth externally on this motherboard?
By Farhan
A:
Dear Sir, There is no Bluetooth option in this motherboard. Thanks for your query!
By Ryans Computers Ltd.
, 29 May 2023
Your Question (Please don`t
use any links, &, (, ), /, +, $, # Symbols)
REVIEW
Customer Reviews
Took some bios changes, but it works great
