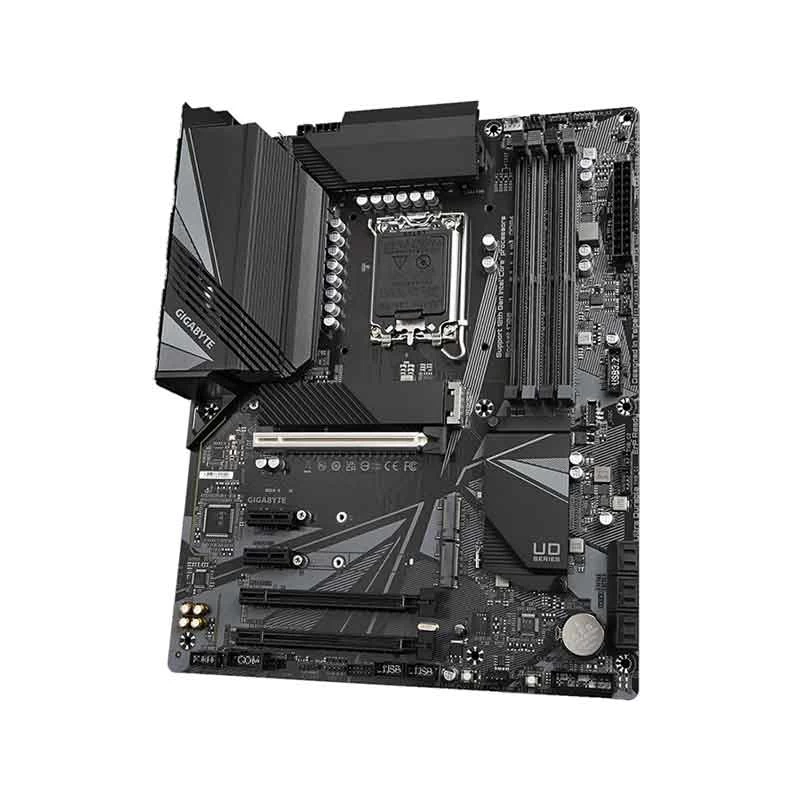

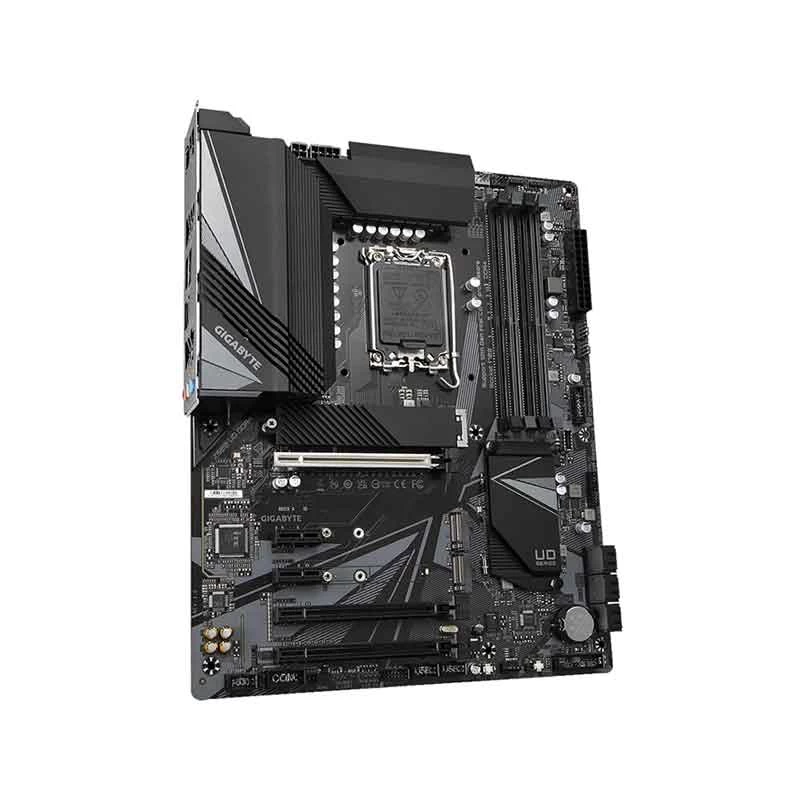

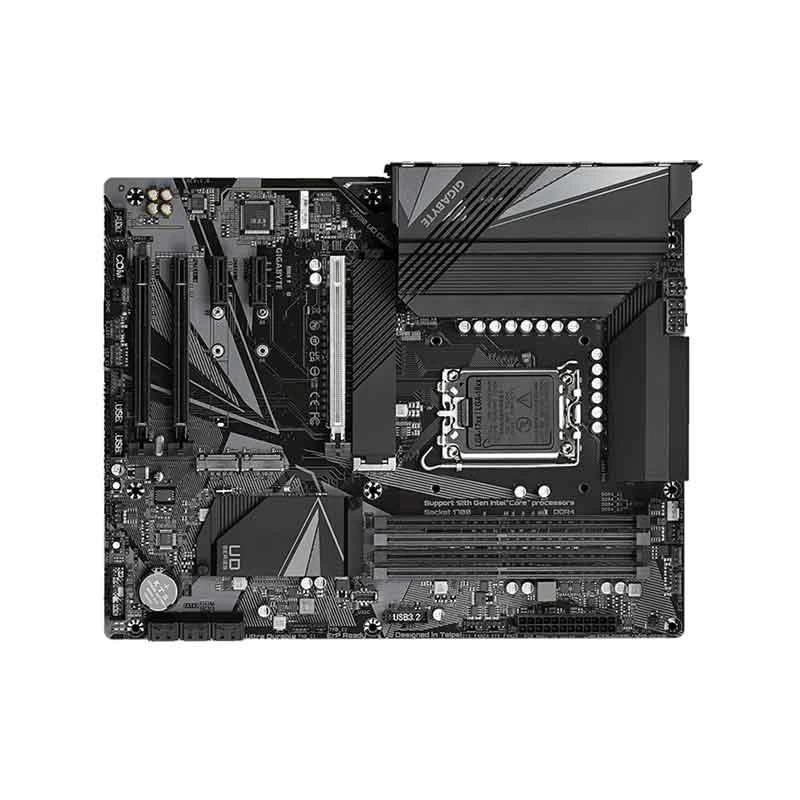

Gigabyte Z690 UD V2 DDR4 Intel Motherboard
Product Id: 02.01.018.419
Brand
Gigabyte
Quick Overview
- Chipset - Intel Z690
- Sockets Supported - LGA1700
- Supported CPU - Intel Core, Pentium, Gold and Celeron Processors
- Generation - 12th/13th
- Memory Slot - 4
- Memory Max. - 128GB
General
Brand
Gigabyte
Model
Gigabyte Z690 UD V2 DDR4
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel Z690
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
Intel Core, Pentium, Gold and Celeron Processors
Generation
12th/13th
Memory Support
Memory Type
DDR4
Memory MHz
5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
Memory Max.
128GB
Memory Max. (Additional Info)
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory.
Optane Memory Support
Yes
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
3
M.2/SSD Expansion Slot Details
3 x M.2 (1 x M.2, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support), (1 x M.2, type 2260/2280 PCIe 4.0 x4/x2 SSD support), (1 x M.2, type 2260/2280 PCIe 4.0 x4/x2 SSD support)
Graphics
Graphics
Integrated
Graphics Chipset
Intel HD Graphics support
Multi-GPU Support
AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
PCI Express Slot
1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x16 slot, running at x1 (PCIEX1_4), 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Audio & Video
Audio Chipset
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip
LAN Speed (Mbps)
10/100/1000/2500 Mbps
WiFi
No
WiFi Technology
Not Applicable
Bluetooth
No
Ports
USB Port
1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
6 x SATA
Thunderbolt
2
TPM Port
1
COM Port
No
Technical Info
CrossFire Support
Yes
Sli Support
No
Raid Support
0,1,5,10
RGB Support
RGB
RGB Sync
RGB Fusion
RGB Connector
2 x RGB LED strip headers
Approx. Power Consumption
90W
Form Factor
ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 11/10
Compatible Products
LGA1700 Socket 13th and 12th Generation Intel Core, Pentium Gold and Celeron Intel Processors.
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
Support for APP Center, Easy Tune, RGB Fusion, Smart Backup, System Information Viewer, Support for Q-Flash Plus, Support for Q-Flash, Support for Xpress Install.
Others

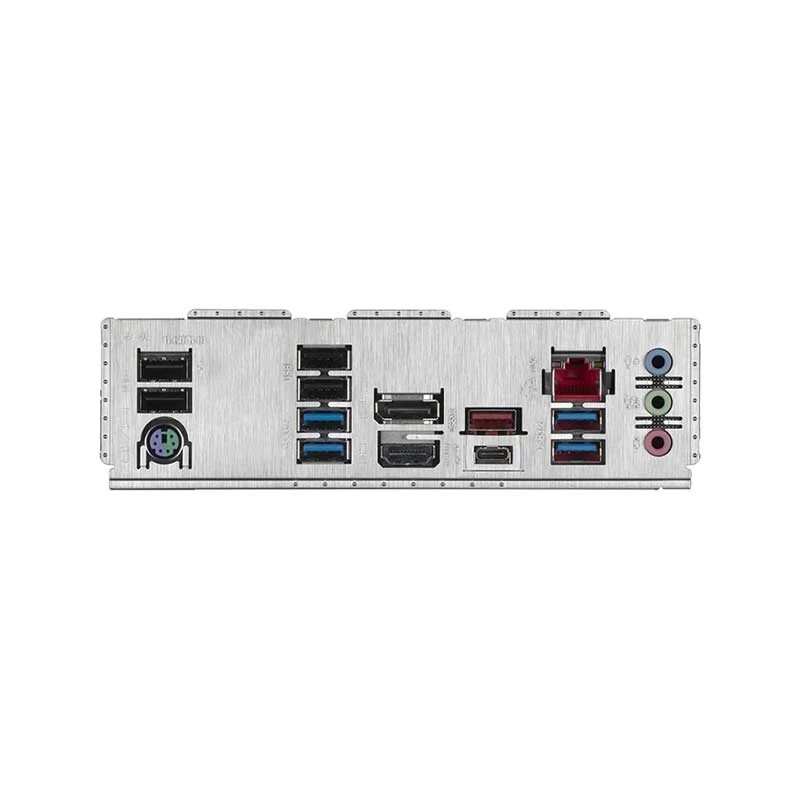

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 1 x front panel header, 1 x S/PDIF Out header, 1 x serial port header, 1 x reset button, 1 x reset jumper, 1 x Q-Flash Plus button, 1 x Clear CMOS jumper. TPM Detail: 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only). Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 1 x RJ-45 port, 3 x audio jacks. I/O Controller: iTE I/O Controller Chip. H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning.2 x Thunderbolt™ add-in card connectors.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
