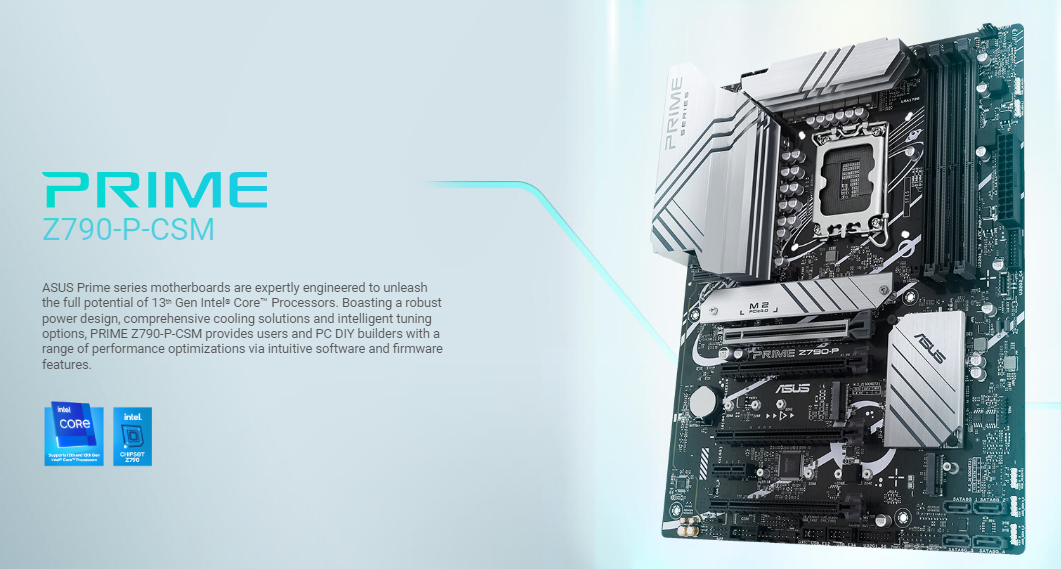

Asus PRIME Z790-P-CSM DDR5 12th/13th/14th Gen Intel LGA1700 Socket Motherboard
Product Id: 02.01.006.437
Brand
Asus
Quick Overview
- Chipset - Intel Z790
- Sockets Supported - LGA1700
- Supported CPU - 13th/14th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Generation - 12th/13th/14th
- Memory Slot - 4
- Memory Max. - 128GB
- Back-Connect Design - No
Brand
Asus
Model
Asus PRIME Z790-P-CSM
Chipset
Intel Z790
Sockets Supported
LGA1700
Built-in Processor
No
Generation
12th/13th/14th
Back-Connect Design
No
Memory Type
DDR5
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
3
WiFi
No
Bluetooth
No
Form Factor
ATX
Supported Operating System
Windows 10 / 11
Body Color
Black
Warranty Details
3 Years Replacement Warranty
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus PRIME Z790-P-CSM Motherboard In Bangladesh
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P-CSM motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency - The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Air- and Liquid-Cooling Controls - ASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AIO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power Control - The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
COOLING
PRIME Z790-P-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

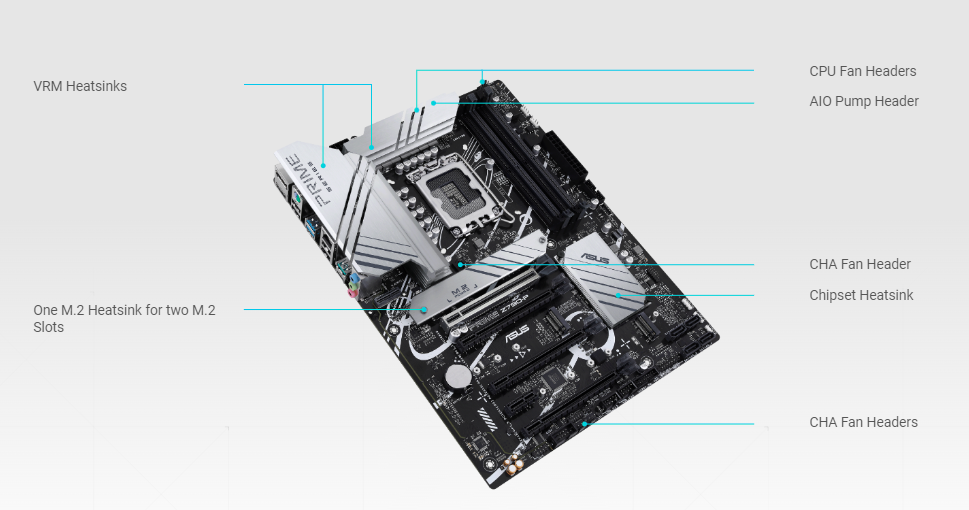

M.2 Heatsink
The flexible M.2 heatsink with removable captive screws can take care of the M.2_1 or M.2_3 slot, warding off throttling that can occur with M.2 storage during sustained transfers.
VRM Heatsinks and Thermal Pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design

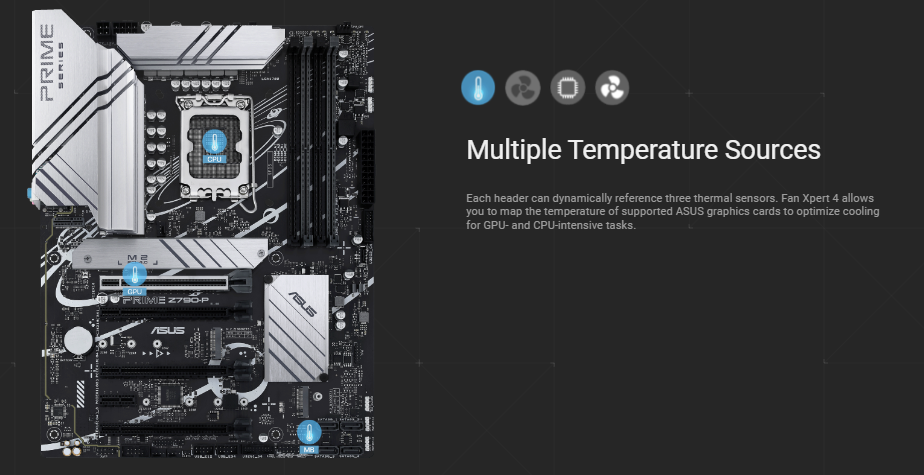

PRIME Z790-P-CSM features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
PERFORMANCE
The PRIME Z790-P-CSM motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

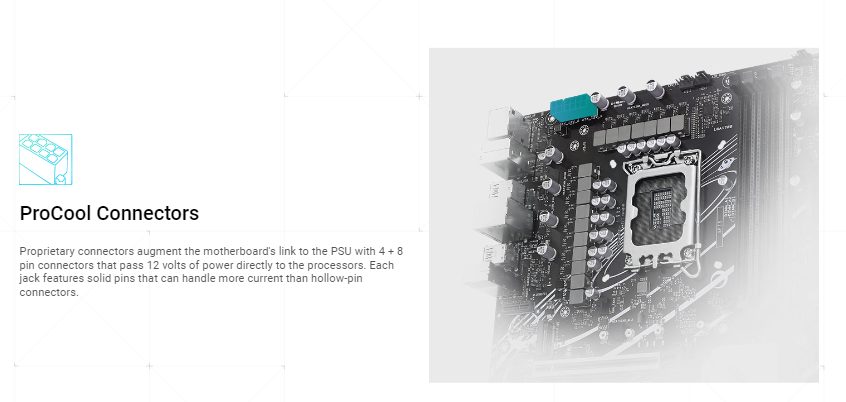

Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P-CSM is geared to cater to the demands of these high-core-count CPUs.
CUSTOMIZATION
The PRIME Z790-P-CSM motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to
intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
What is the price of Asus PRIME Z790-P-CSM Motherboard In Bangladesh?
The price of Asus PRIME Z790-P-CSM Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus PRIME Z790-P-CSM Motherboard from our website or visit our showrooms nearby.
